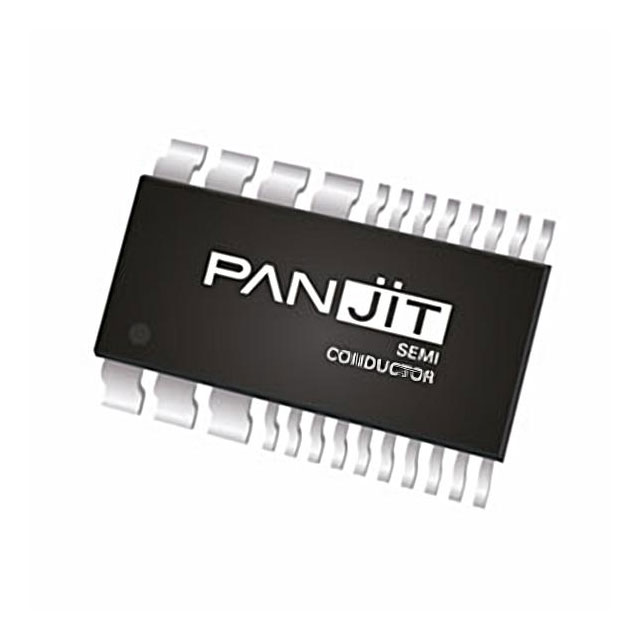

Specification	PM30003V-0405B_R2_00301

A/D Channels	7 count
A/D Resolution (bits)	12 bit
Connectivity	USART, UART, SPI, I2C
Core Processor	ARM® Cortex®-M0
Core Size (Bit Width)	32 Bit
Mounting Type	Surface Mount
Number of I/O	10
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.173 in
Package Name	25-TSSOP
Package Width	4.4 mm
Peripherals	PWM, WDT, PDR, POR, Brown-out Detect, Reset
Program Memory Depth	16 K
Program Memory Size	16 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	4 K
RAM Size Width	8 bit
Speed	48 MHz
Voltage - Supply (Vcc/Vdd) Maximum	24 V
Voltage - Supply (Vcc/Vdd) Minimum	7 V
