1577648-1
ActiveTE Connectivity AMP Connectors

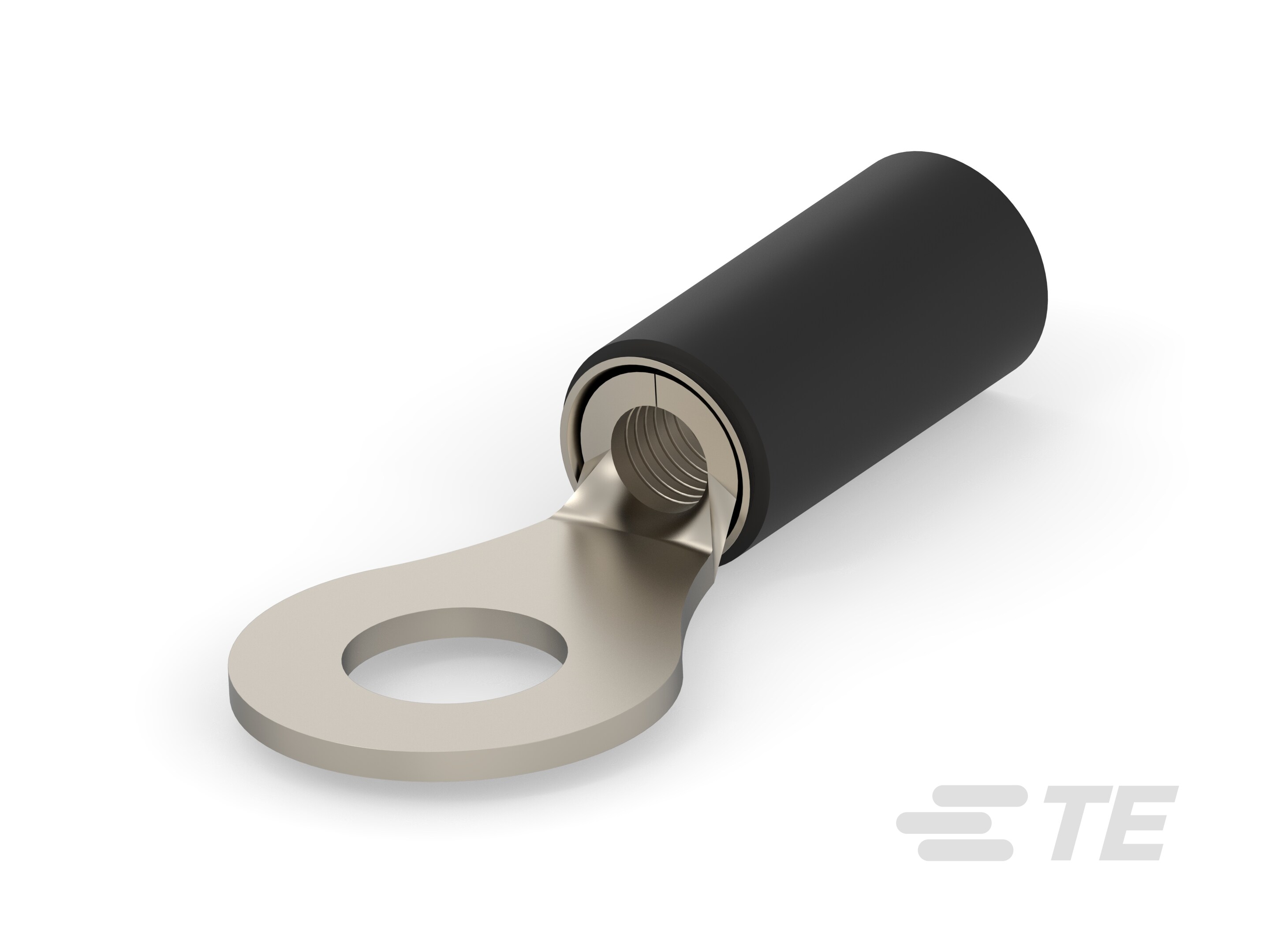

TERMINAL RT PIDG PEEK STRATO 10 AWG
1577648-1
ActiveTE Connectivity AMP Connectors
TERMINAL RT PIDG PEEK STRATO 10 AWG
Description
General part information
1577648-1
Closed Ring Tongue Terminal, 10 AWG, 1/4 Stud, 6.74 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1577648-1 |
|---|---|
| Color | Black |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 1.327 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.531 in |
| Wire Gauge | 10 AWG |
