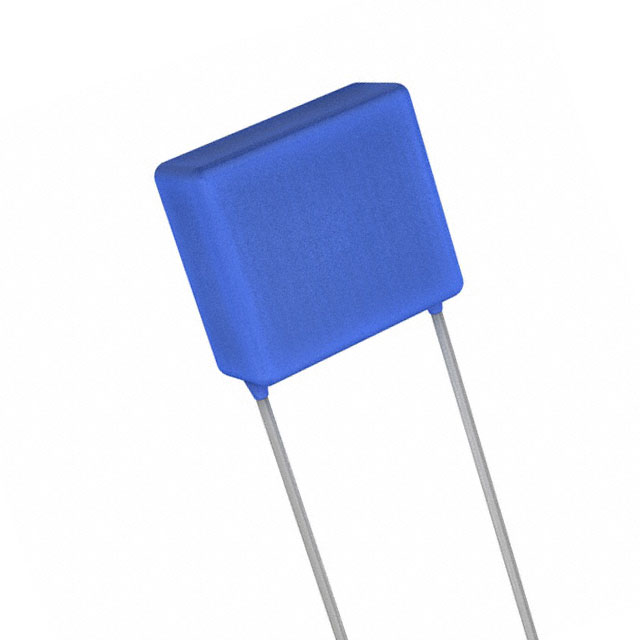

10HV25B224MN

Active

KEMET

CAP CER 0.22UF 1KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.22UF 1KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

CAP CER 0.22UF 1KV X7R RADIAL

Part	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Tolerance	Capacitance	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Lead Style	Voltage - Rated	Voltage - Rated
KEMET 10HV25B224MN	Through Hole	Radial	-55 °C	125 °C	High Voltage	20 %	0.22 µF	X7R	0.6 in	15.24 mm	SMPS Filtering	17.02 mm	0.271 "	6.89 mm	0.67 in	14.6 mm	0.575 in	Straight	1 kV	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.22 µF ±20% 1000V (1kV) Ceramic Capacitor X7R Radial
