10SEP270M

Active

Panasonic Electronic Components

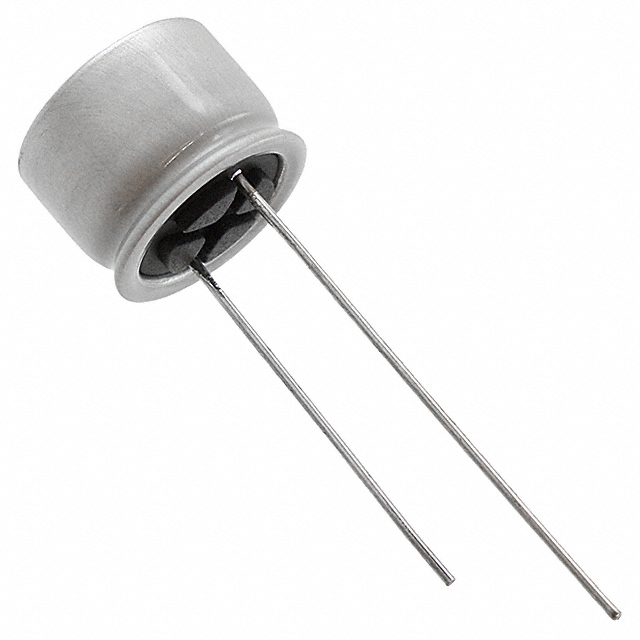

CAP ALUM POLY 270UF 20% 10V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10SEP270M

Active

Panasonic Electronic Components

CAP ALUM POLY 270UF 20% 10V TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10SEP270M	10SEP Series

Applications	General Purpose	General Purpose
Capacitance	270 µF	56 - 560 µF
ESR (Equivalent Series Resistance)	25 mOhm	13 - 45 mOhms
Height - Seated (Max)	-	6 - 7 mm
Height - Seated (Max)	-	0.236 - 0.276 "
Height - Seated (Max) [Max] [z]	8 mm	8 - 13 mm
Height - Seated (Max) [Max] [z]	0.315 in	0.315 - 0.512 "
Lead Spacing	5 mm	2.5 - 5 mm
Lead Spacing	0.197 in	0.098 - 0.197 in
Lifetime @ Temp.	3000 Hrs	3000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Ripple Current @ High Frequency	3.7 A	1.7 - 5.23 A
Ripple Current @ Low Frequency	185 mA	85 - 261.5 mA
Size / Dimension [diameter]	10 mm	6.3 - 10 mm
Size / Dimension [diameter]	0.394 in	0.248 - 0.394 "
Tolerance	20 %	20 %
Type	Polymer	Polymer
Voltage - Rated	10 V	10 V

10SEP Series

CAP ALUM POLY 120UF 20% 10V TH

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ High Frequency	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Tolerance	Type	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 10SEP120M+TSS	General Purpose	105 ░C	-55 °C	10 V	35 mOhms	Through Hole	2.56 A	120 µF	Radial, Can	0.315 "	8 mm	3.5 mm	0.138 in	128 mA	20 %	Polymer	3000 Hrs	7 mm	0.276 "
Panasonic Electronic Components 10SEP330M+TSS	General Purpose	105 ░C	-55 °C	10 V	17 mOhm	Through Hole	3.95 A	330 µF	Radial, Can	0.315 "	8 mm	3.5 mm	0.138 in	197.5 mA	20 %	Polymer	3000 Hrs			12 mm	0.472 "
Panasonic Electronic Components 10SEP560M	General Purpose	105 ░C	-55 °C	10 V	13 mOhms	Through Hole	5.23 A	560 µF	Radial, Can	0.394 in	10 mm	5 mm	0.197 in	261.5 mA	20 %	Polymer	3000 Hrs			13 mm	0.512 "
Panasonic Electronic Components 10SEP330M	General Purpose	105 ░C	-55 °C	10 V	17 mOhm	Through Hole	3.95 A	330 µF	Radial, Can	0.315 "	8 mm	3.5 mm	0.138 in	197.5 mA	20 %	Polymer	3000 Hrs			12 mm	0.472 "
Panasonic Electronic Components 10SEP270M	General Purpose	105 ░C	-55 °C	10 V	25 mOhm	Through Hole	3.7 A	270 µF	Radial, Can	0.394 in	10 mm	5 mm	0.197 in	185 mA	20 %	Polymer	3000 Hrs			8 mm	0.315 in
Panasonic Electronic Components 10SEP56M	General Purpose	105 ░C	-55 °C	10 V	45 mOhm	Through Hole	1.7 A	56 µF	Radial, Can	0.248 in	6.3 mm	2.5 mm	0.098 in	85 mA	20 %	Polymer	3000 Hrs	6 mm	0.236 in
Panasonic Electronic Components 10SEP560M+T	General Purpose	105 ░C	-55 °C	10 V	13 mOhms	Through Hole	5.23 A	560 µF	Radial, Can	0.394 in	10 mm	5 mm	0.197 in	261.5 mA	20 %	Polymer	3000 Hrs			13 mm	0.512 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.47
		10	$ 1.02
		50	$ 0.92
		100	$ 0.74
		500	$ 0.66
		1000	$ 0.58
		2500	$ 0.54
		5000	$ 0.52

Description

General part information

10SEP Series

270 µF 10 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 3000 Hrs @ 105°C
