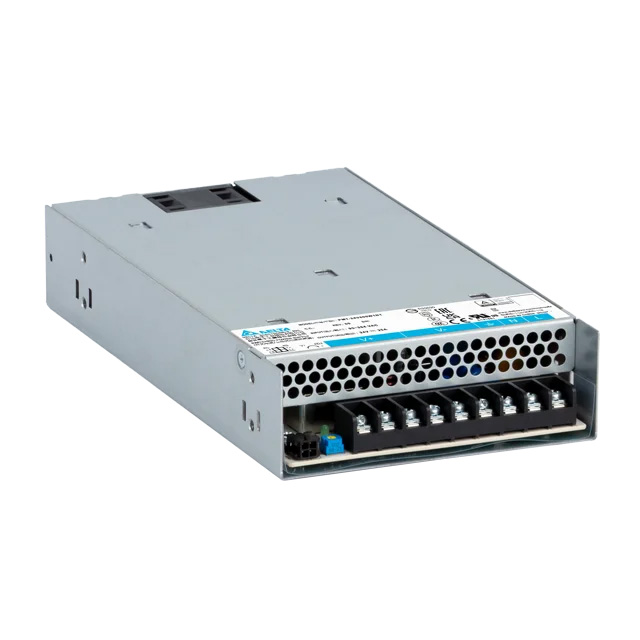

PMR-36V600W1BT
ActiveDelta Electronics
600W/36V - TERMINAL BLOCK - PFC
PMR-36V600W1BT
ActiveDelta Electronics
600W/36V - TERMINAL BLOCK - PFC
Description
General part information
PMR-36V600W1BT
Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC, 127 ~ 375 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR-36V600W1BT |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | TUV, cURus, CCC, CB, CE, KC, EAC, UKCA |
| Current - Output 1 | 16.6 A |
| Efficiency | 92 % |
| Features | PFC, Adjustable Output, Universal Input, DC Input Capable, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 598 W |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 8.86 in |
| Size / Dimension Width | 4.88 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 375 VDC |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 36 V |
