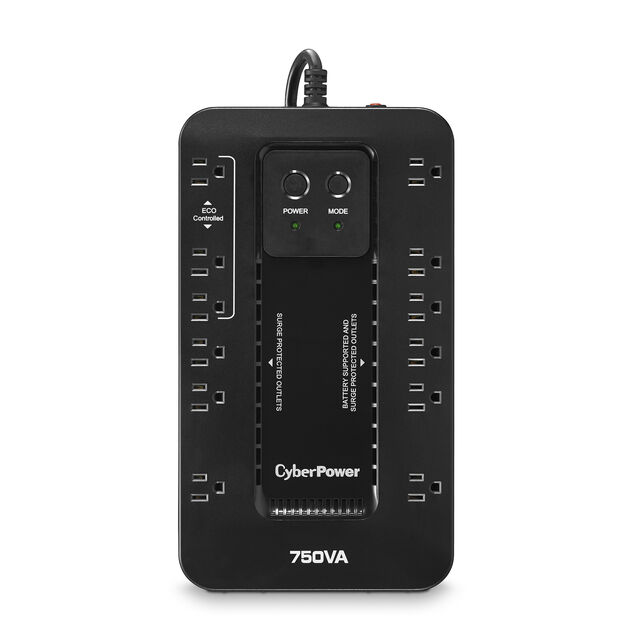

EC750G
ActiveCyber Power Systems (USA) Inc.
750VA/450W, SIMULATED SINE WAVE,
EC750G
ActiveCyber Power Systems (USA) Inc.
750VA/450W, SIMULATED SINE WAVE,
Description
General part information
EC750G
750VA/450W, SIMULATED SINE WAVE,
Technical Specifications
Parameters and characteristics for this part
| Specification | EC750G |
|---|---|
| AC Outlet Types | UPS, Surge Only |
| AC Outlets (Count) | 12 count |
| AC Outlets (Surge Only) | 6 count |
| AC Outlets (UPS) | 6 count |
| Applications | General Purpose, Industrial Control |
| Backup Time - Max Load | 2.8 minutes |
| Cord Length | 6.6 ft |
| Form | Desktop |
| Height | 9.5 in |
| Input Connector | NEMA 5-15P |
| Power - Rated (VA) | 750 VA |
| Power - Rated (W) | 450 W |
| Size / Dimension Length | 15 in |
| Size / Dimension Width | 4.35 in |
| Type | Standby (No Regulation) |
| Voltage - Input | 120 VAC |
| Voltage - Output | 120 V |
