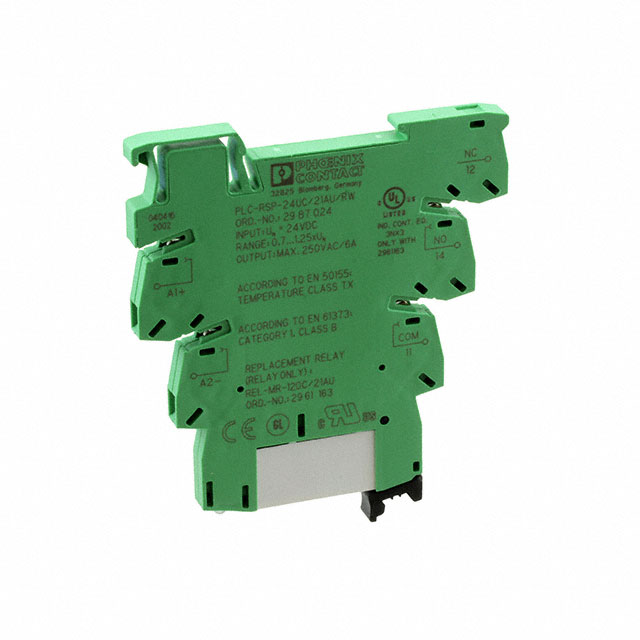

2987024
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2987024
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2987024 | 29870 Series |
|---|---|---|
| Coil Current | 9 mA | 2.9 - 20 mA |
| Coil Resistance | 2.67 kOhms | 1.2 - 4706 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 72 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | 50 mA | 6 - 50 A |
| Features | Socket Included, Diode, Lighted Indicator | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 4 ms | 4 - 8 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 4 ms | 4 - 11 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal |
29870 Series
RELAY GEN PURPOSE SPDT 6A 24V
| Part | Contact Material | Features | Coil Current | Coil Voltage | Coil Type | Contact Form | Switching Voltage | Relay Type | Operate Time | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Coil Resistance | Mounting Type | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2987011 | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | 5.1 mA | 24 VDC | Non Latching | SPDT (1 Form C) | 250 VAC, 250 VDC | General Purpose | 8 ms | 11 ms | -40 °C | 70 °C | Spring Terminal | 4706 Ohms | DIN Rail | 6 A |
Phoenix Contact 2987024 | Gold (Au), Silver Tin Oxide (AgSnO) | Diode, Lighted Indicator, Socket Included | 9 mA | 24 VDC | Non Latching | SPDT (1 Form C) | 30 VAC, 36 VDC | General Purpose | 4 ms | 4 ms | -40 °C | 70 °C | Spring Terminal | 2.67 kOhms | DIN Rail | 50 mA |
Phoenix Contact 2987040 | Gold (Au), Silver Tin Oxide (AgSnO) | Diode, Lighted Indicator, Socket Included | 3 mA | 72 VDC | Non Latching | SPDT (1 Form C) | 30 VAC, 36 VDC | General Purpose | 4 ms | 4 ms | -40 °C | 70 °C | Spring Terminal | 24 kOhms | DIN Rail | 50 mA |
Phoenix Contact 2987037 | Silver Tin Oxide (AgSnO) | Lighted Indicator, Socket Included | 2.9 mA | 72 VDC | Non Latching | SPDT (1 Form C) | 250 VAC, 250 VDC | General Purpose | 8 ms | 11 ms | -40 °C | 70 °C | Spring Terminal | 24.83 kOhms | DIN Rail | 6 A |
Phoenix Contact 2987079 | Silver Nickel (AgNi) | Lighted Indicator, Socket Included | 20 mA | 24 VDC | Non Latching | SPDT (1 Form C) | 250 VAC, 250 VDC | General Purpose | 5 ms | 11 ms | -40 °C | 70 °C | Spring Terminal | 1.2 kOhms | DIN Rail | 10 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29870 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
