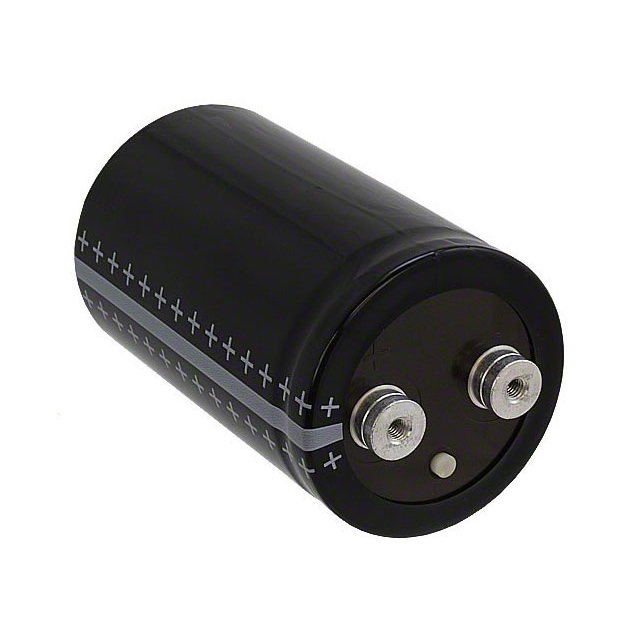

Specification	B41580A9229M003

Applications	General Purpose
Capacitance	22000 µF
ESR (Equivalent Series Resistance)	6 mOhm
Height - Seated (Max)	4.201 in
Impedance	6 mOhm
Lead Spacing	1.248 in
Lifetime	3000 Hrs
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	17 A
Size / Dimension Diameter	3.028 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC
