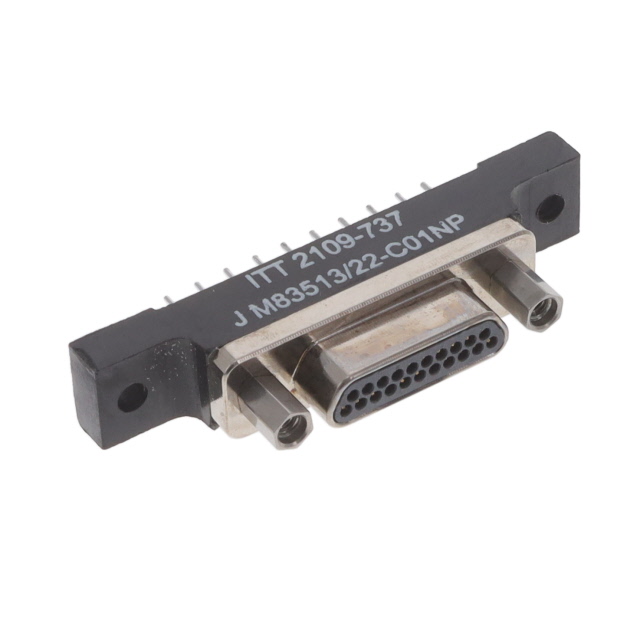

M83513/22-C01NP
ActiveITT Cannon, LLC
MICRO-D PLUG 21POS PCB, ELECTROL
M83513/22-C01NP
ActiveITT Cannon, LLC
MICRO-D PLUG 21POS PCB, ELECTROL
Description
General part information
M83513/22-C01NP
21 Position D-Type, Micro-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/22-C01NP |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.05 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Termination | Solder |
