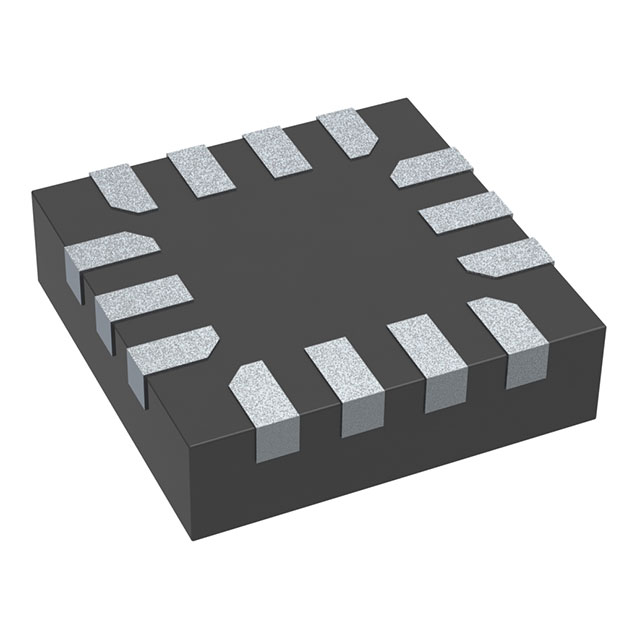

MA735GGU-Z
ActiveMonolithic Power Systems Inc.
9-BIT TO 13-BIT, DIGITAL, CONTAC
MA735GGU-Z
ActiveMonolithic Power Systems Inc.
9-BIT TO 13-BIT, DIGITAL, CONTAC
Description
General part information
MA735GGU-Z
Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | MA735GGU-Z |
|---|---|
| Actuator Type | Not Included, External Magnet |
| For Measuring | Angle |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | PWM, SPI |
| Output Signal | Clockwise Increase, Programmable, Counterclockwise Increase |
| Package / Case | 14-UFQFN |
| Package Length | 2 mm |
| Package Name | 14-UTQFN |
| Package Width | 2 mm |
| Technology | Hall Effect |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
