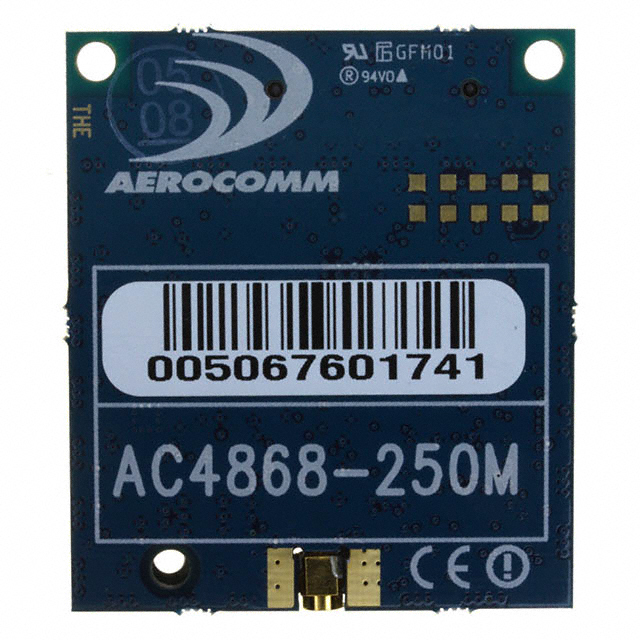

AC4868-250M-485
ObsoleteEzurio LLC
RF TXRX MOD ISM<1GHZMMCX SMD
AC4868-250M-485
ObsoleteEzurio LLC
RF TXRX MOD ISM<1GHZMMCX SMD
Description
General part information
AC4868-250M-485
RF TXRX MOD ISM<1GHZMMCX SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | AC4868-250M-485 |
|---|---|
| Antenna Type | MMCX, Antenna Not Included |
| Current - Receiving | 36 mA |
| Current - Transmitting (Max) | 240 mA |
| Current - Transmitting (Min) | 54 mA |
| Data Rate | 57.6 kBaud |
| Frequency | 868 MHz |
| Modulation | FSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 24 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -103 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.3 V |
