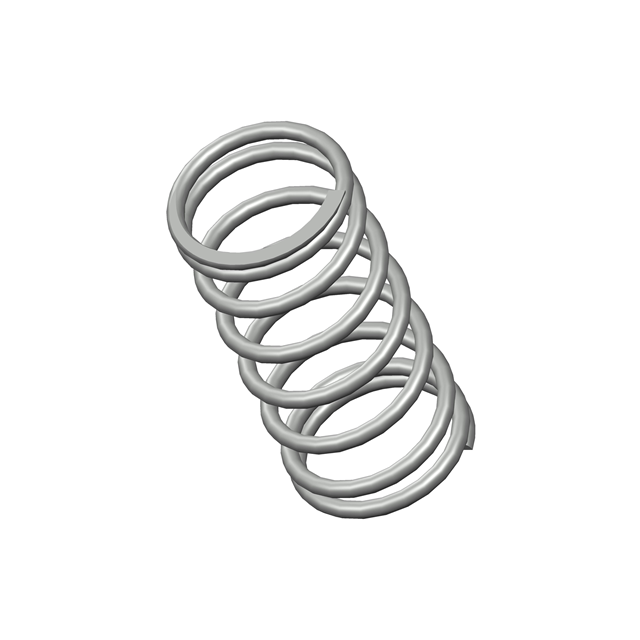

10243CS
ActiveCentury Spring Corp
COMP O= .375,L= .81,W= .035
10243CS
ActiveCentury Spring Corp
COMP O= .375,L= .81,W= .035
Description
General part information
10243CS
COMP O= .375,L= .81,W= .035
Technical Specifications
Parameters and characteristics for this part
| Specification | 10243CS |
|---|---|
| Diameter - Inside | 0.305 in |
| Diameter - Outside | 0.375 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.81 in |
| Material | Spring Steel |
| Rate (lbs/in) | 9.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.035 in |
