CC10-150NK-RC
ActiveAllied Components International
150NH +/-10% CERAMIC CORE CHIP
CC10-150NK-RC
ActiveAllied Components International
150NH +/-10% CERAMIC CORE CHIP
Description
General part information
CC10-150NK-RC

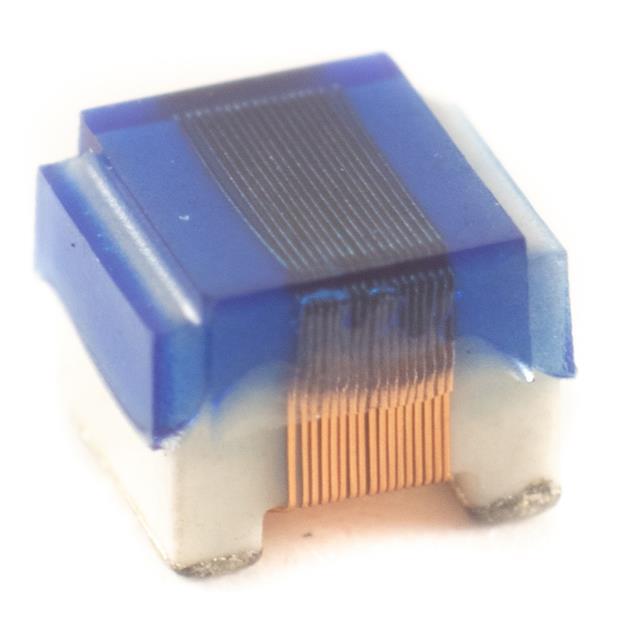

150 nH Unshielded Wirewound Inductor 580 mA 700mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CC10-150NK-RC |
|---|---|
| Current Rating | 580 mA |
| DC Resistance (DCR) (Max) | 700 mOhm |
| Frequency - Self Resonant | 850 MHz |
| Height - Seated (Max) | 0.087 in |
| Inductance | 150 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Q | 45 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.115 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 10 % |
| Type | Wirewound |
