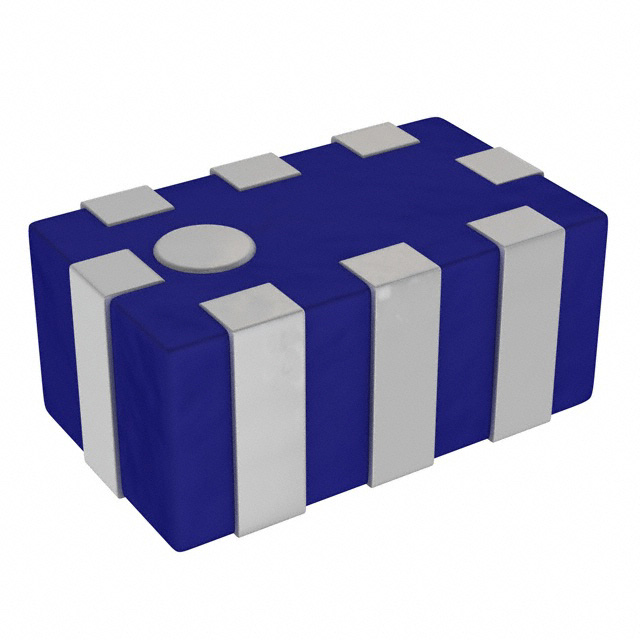

FI212C245036-T
ActiveTaiyo Yuden
MULTILAYER FILTER, 2.4GHZ TO 2.5GHZ
FI212C245036-T
ActiveTaiyo Yuden
MULTILAYER FILTER, 2.4GHZ TO 2.5GHZ
Description
General part information
FI212C245036-T
2.45GHz Center Frequency Balance RF Filter (Radio Frequency) 100MHz Bandwidth 3.7dB 0805 (2012 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | FI212C245036-T |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Balance |
| Frequency (Center) | 2.45 GHz |
| Height (Max) | 0.02 in |
| Insertion Loss | 3.7 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 4 PC Pad |
| Ripple (dB) | 1 dB |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
