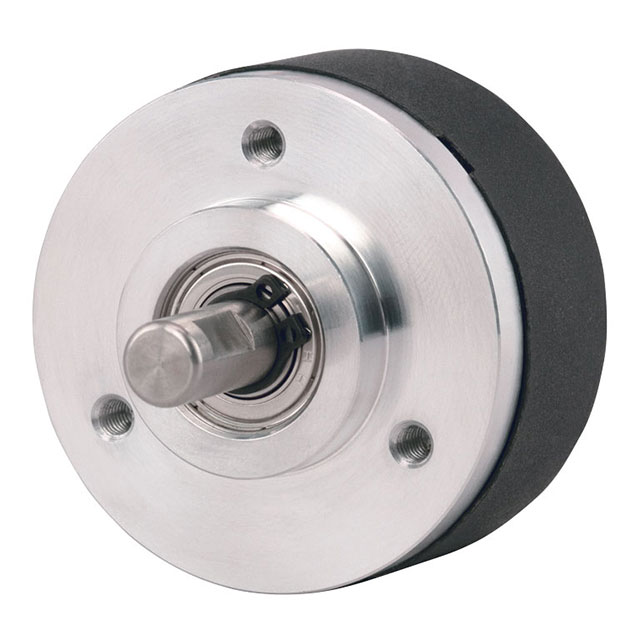

15S-20M1-8192NV1ROC-M00

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 6MM

Search across all available documentation for this part.

Active

Encoder Products Company

1.5" DIA INCREMENTAL ENCODER 6MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15S-20M1-8192NV1ROC-M00	15S-20M1 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Incremental	Incremental
Mounting Type	Servo Mount	Servo Mount
Orientation	User Selectable	User Selectable
Output Type	Open Collector	Open Collector
Pulses per Revolution	8192	100 - 8192
Rotational Life (Cycles Min) [Min]	12B	12B
Termination Style	Cable	Cable
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

1.5" DIA INCREMENTAL ENCODER 6MM

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Orientation	Output Type	Mounting Type	Actuator Type	Pulses per Revolution	Encoder Type	Termination Style	Rotational Life (Cycles Min) [Min]
Encoder Products Company 15S-20M1-0200NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	200	Incremental	Cable	12B
Encoder Products Company 15S-20M1-0100NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	100	Incremental	Cable	12B
Encoder Products Company 15S-20M1-1000NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	1000	Incremental	Cable	12B
Encoder Products Company 15S-20M1-10000NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	1000	Incremental	Cable	12B
Encoder Products Company 15S-20M1-4096NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	4096	Incremental	Cable	12B
Encoder Products Company 15S-20M1-8192NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	8192	Incremental	Cable	12B
Encoder Products Company 15S-20M1-3600NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	3600 per revolution	Incremental	Cable	12B
Encoder Products Company 15S-20M1-1024NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	1024	Incremental	Cable	12B
Encoder Products Company 15S-20M1-0600NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	600	Incremental	Cable	12B
Encoder Products Company 15S-20M1-2500NV1ROC-M00	5 V	28 V	User Selectable	Open Collector	Servo Mount	Shaft	2500	Incremental	Cable	12B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 360.00

General part information

Rotary Encoder Incremental 8192 Open Collector User Selectable

Technical documentation and resources
