Description
General part information

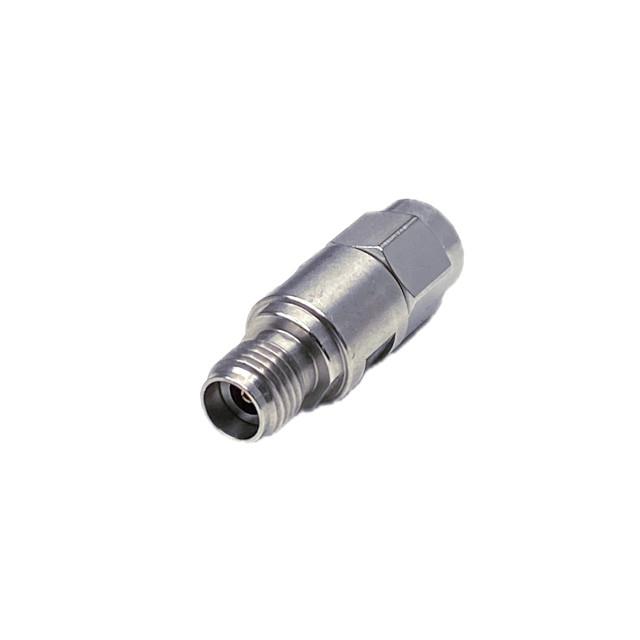

K292J-3.5P
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 3.5mm Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | K292J-3.5P |
|---|---|
| Adapter Series Size | 3.5 mm, 2.9 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Jack Size | 2.92 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) | Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Size | 3.5 mm |
| Convert To (Adapter End) Type | 3.5mm Plug |
| Fastening Type | Threaded |
| Frequency - Max | 34 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
