CB1.13-IPX4L-SAFGT-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF4L-SMA JK-PL 6"
CB1.13-IPX4L-SAFGT-6IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF4L-SMA JK-PL 6"
Description
General part information
CB1.13-IPX4L-SAFGT-6IN

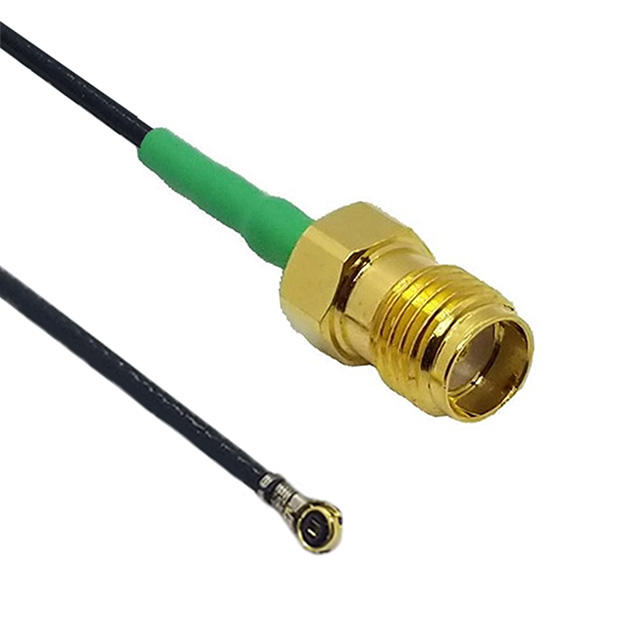

Cable Assembly Coaxial I-PEX MHF4L to SMA 1.13mm OD Coaxial Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.13-IPX4L-SAFGT-6IN |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF4L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF4L to SMA |
