7029-3825
ActiveMcGill Microwave Systems
COAX CBL SMA TO SMA 12"
7029-3825
ActiveMcGill Microwave Systems
COAX CBL SMA TO SMA 12"
Description
General part information
7029-3825

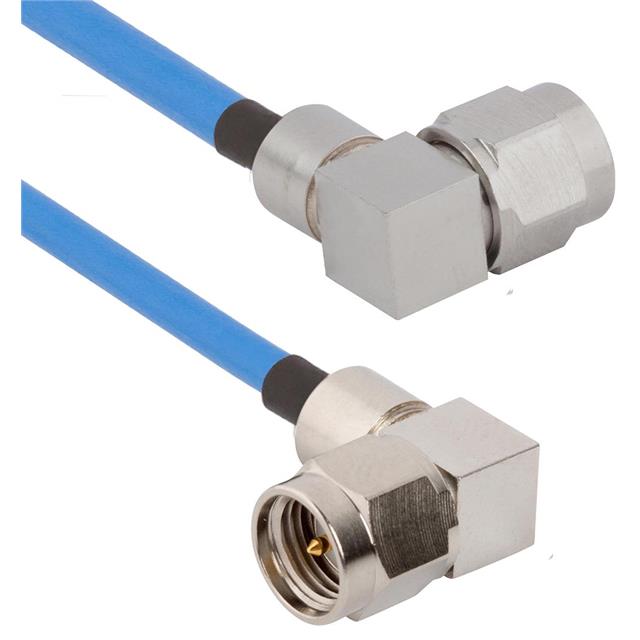

Cable Assembly Coaxial SMA to SMA TFlex-405 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7029-3825 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | TFlex |
| Cable Type Size | 405 |
| Color | Blue |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
