Description
General part information

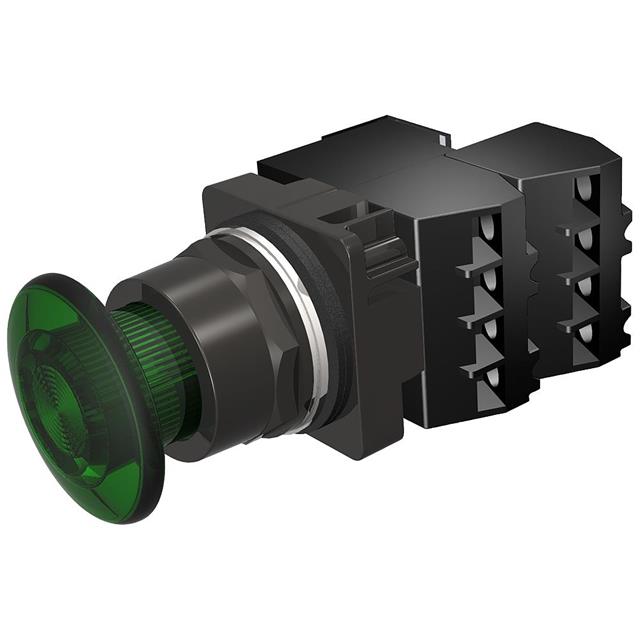

52BP7CSU
Pushbutton Switch DPST-NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 52BP7CSU |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NC |
| Current Rating | 60 A |
| Illumination Type | Incandescent |
| Illumination Voltage (Nominal) | 12 V |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 110 V |
