009159004061916
ActiveKYOCERA AVX

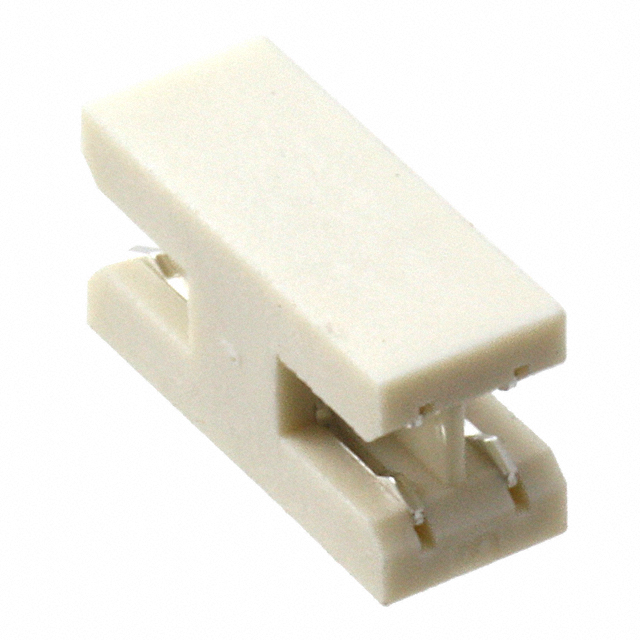

CONN SSL BRIDGE 4POS 2MM
009159004061916
ActiveKYOCERA AVX
CONN SSL BRIDGE 4POS 2MM
Description
General part information
009159004061916
SSL Connector 4 Position Adapter, Bridge Board to Board 0.079" (2.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 009159004061916 |
|---|---|
| Connector Type | Bridge, Adapter |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating | 3 A |
| Features | Open Ended, 1.60mm Thick PCB |
| Housing Color | White |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 5 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.079 in |
| Style | Board |
| Voltage Rating | 300 VAC/DC |
