KGM21AR50J107MU
ActiveKYOCERA AVX
CAP CER 100UF 6.3V X5R 0805
KGM21AR50J107MU
ActiveKYOCERA AVX
CAP CER 100UF 6.3V X5R 0805
Description
General part information
KGM21AR50J107MU

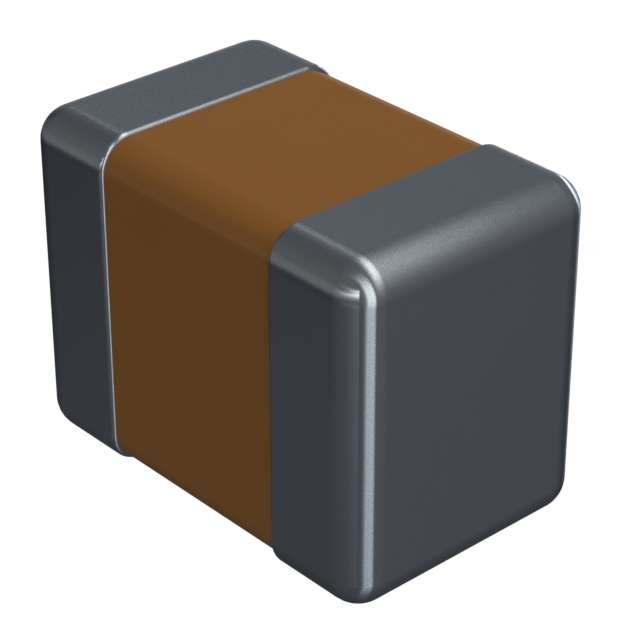

100 µF ±20% 6.3V Ceramic Capacitor X5R 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | KGM21AR50J107MU |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.057 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
