TC9-1-75G2+

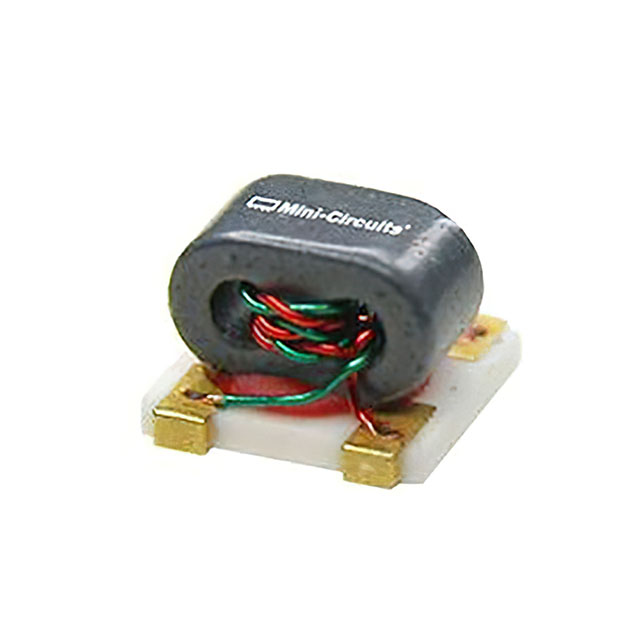

RF Balun 300kHz ~ 475MHz 8:75 6-SMD (5 Leads), Flat Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TC9-1-75G2+ |
|---|---|
| Frequency Range (Max) | 475 MHz |
| Frequency Range (Min) | 300 kHz |
| Impedance - Balanced | 75 Ohm |
| Impedance - Unbalanced | 8 Ohm |
| Insertion Loss (Max) | 3 dB |
| Mounting Type | Surface Mount |
| Package Leads | 5 Leads |
| Package Name | 6-SMD |
| Return Loss (Min) | 7.44 dB |
