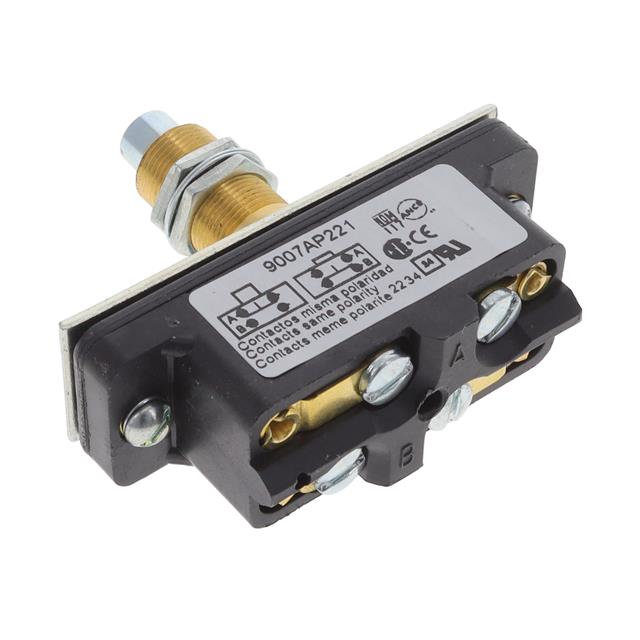

9007AP221
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT SPDT 15A 120V
9007AP221
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT SPDT 15A 120V
Description
General part information
9007AP221
Switch SPDT (DB/DM) Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007AP221 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT (DB/DM) |
| Current Rating | 0.5 A, 15 A |
| Ingress Protection | IP20 |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -29 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
