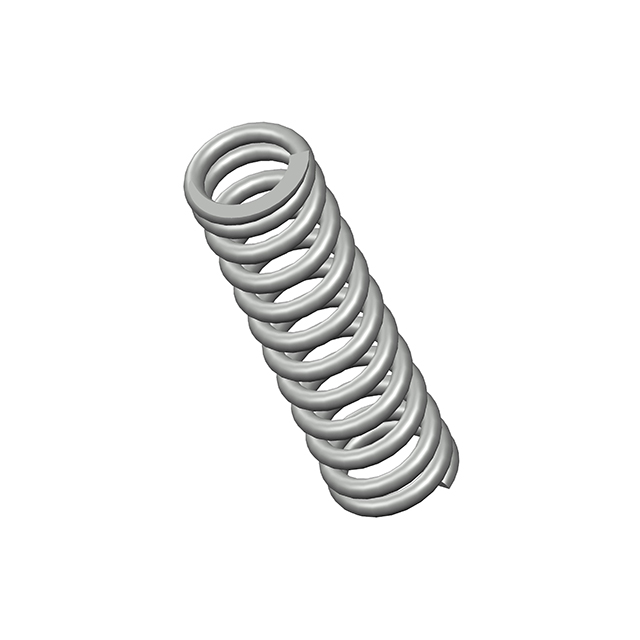

71610CS
ActiveCentury Spring Corp
COMP O= .480,L= 1.75,W= .074
71610CS
ActiveCentury Spring Corp
COMP O= .480,L= 1.75,W= .074
Description
General part information
71610CS
COMP O= .480,L= 1.75,W= .074
Technical Specifications
Parameters and characteristics for this part
| Specification | 71610CS |
|---|---|
| Diameter - Inside | 0.332 in |
| Diameter - Outside | 0.48 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.75 in |
| Material | Music Wire |
| Rate (lbs/in) | 64 lbs/in |
| Type | Compression |
| Wire Diameter | 0.074 in |
