Description
General part information

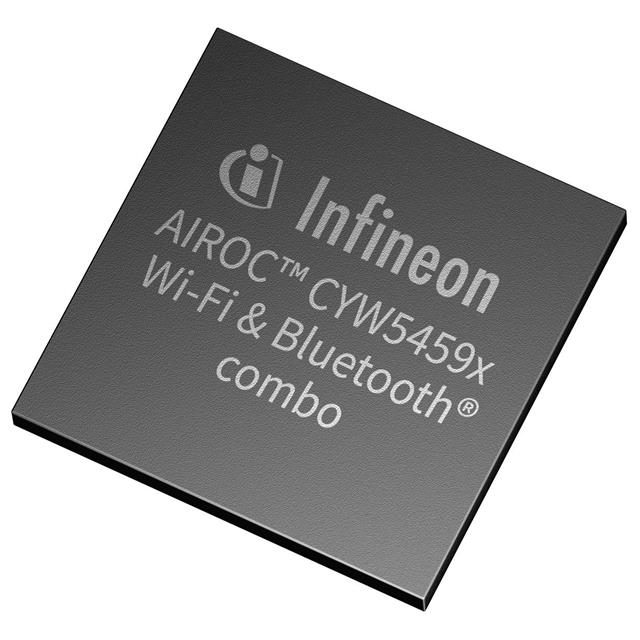

CYW54591RKUBGT
IC RF TxRx + MCU Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth v5.0 2.4GHz, 5GHz 194-UFBGA, WLBGA
Technical Specifications
Parameters and characteristics for this part
| Specification | CYW54591RKUBGT |
|---|---|
| Data Rate (Max) | 433.3 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Frequency | 2.4GHz, 5GHz |
| Memory Size (RAM) | 896 kB |
| Memory Size (ROM) | 896 kB |
| Memory Type | RAM, ROM |
| Modulation | 256QAM, DSSS, BPSK, OFDM, CCK, 64QAM, 16QAM, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | WLBGA, 194-UFBGA |
| Package Length | 5.16 mm |
| Package Name | 194-WLBGA |
| Package Width | 7.7 mm |
| Power - Output | 21 dBm |
| Protocol | Bluetooth v5.0, 802.11b, 802.11a, 802.11-c, 802.11g |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98.8 dBm |
| Serial Interfaces | UART, I2S, PCM, USB |
| Type | TxRx + MCU |
| Voltage - Supply (Maximum) | 4.8 V |
| Voltage - Supply (Minimum) | 3 V |
