CA-141SCNMSM036
ActivePasternack
CA.141 S-R STD COP NM/SM 36""
CA-141SCNMSM036
ActivePasternack
CA.141 S-R STD COP NM/SM 36""
Description
General part information
CA-141SCNMSM036

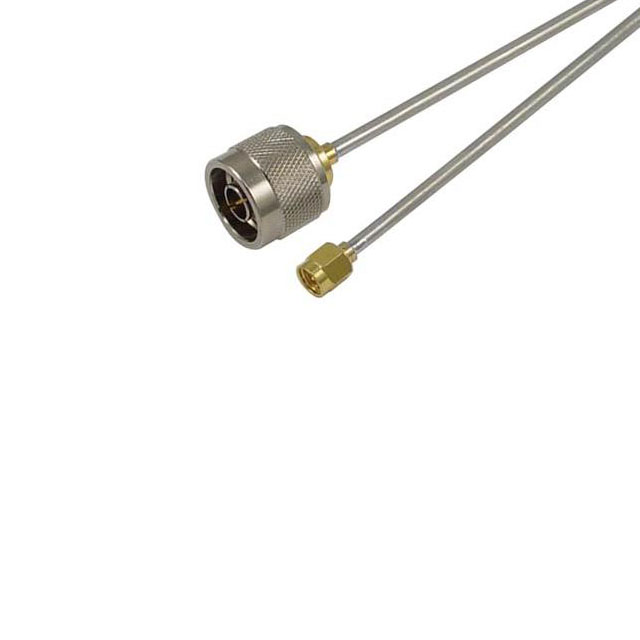

Cable Assembly Coaxial SMA to N-Type 0.141" Semi-Rigid Cable 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-141SCNMSM036 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Semi, Rigid Cable, Semi-Rigid Cable |
| Cable Type Size | 0.141 ", 0.141 |
| Color | Silver |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
