B82464A4224K000
ActiveEPCOS - TDK Electronics
FIXED IND 220UH 690MA 610MOHM SM
B82464A4224K000
ActiveEPCOS - TDK Electronics
FIXED IND 220UH 690MA 610MOHM SM
Description
General part information
B82464A4224K000

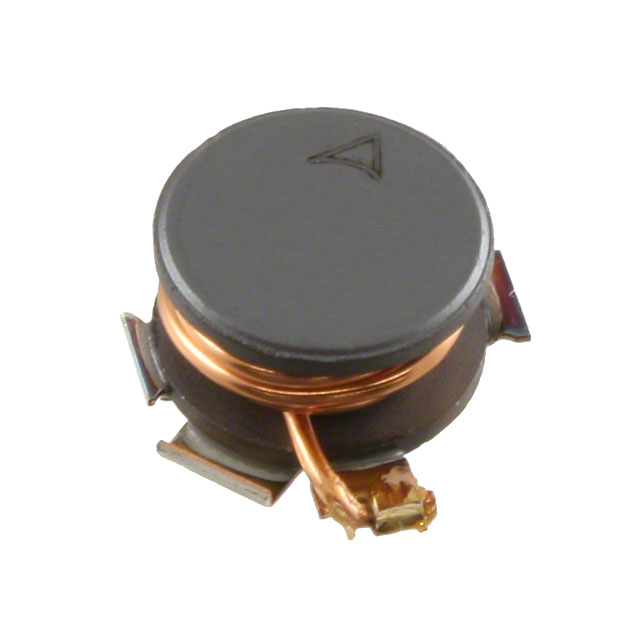

220 µH Unshielded Drum Core, Wirewound Inductor 690 mA 610mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82464A4224K000 |
|---|---|
| Current - Saturation (Isat) | 0.85 mA |
| Current Rating | 690 mA |
| DC Resistance (DCR) (Max) | 610 mOhm |
| Frequency - Self Resonant | 100 kHz |
| Height - Seated (Max) | 0.189 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.409 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
