HG74205QPCUPR-NF
ActivePasternack

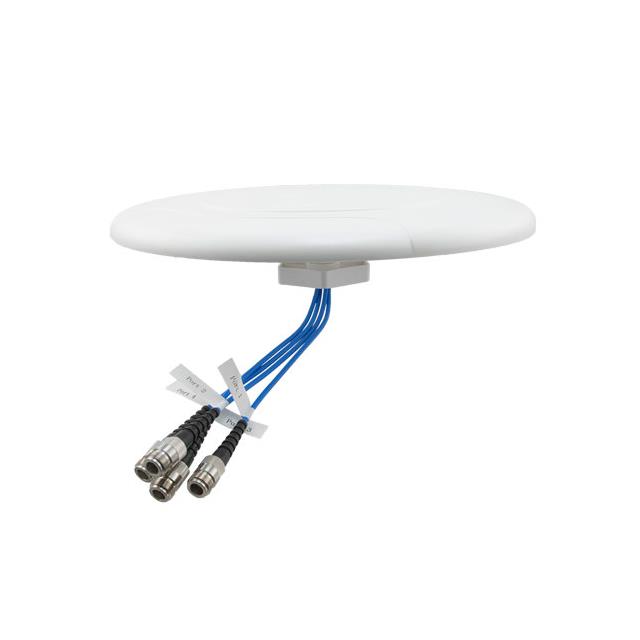

INDOOR CEILING OMNI ANTENNA, 5 D
HG74205QPCUPR-NF
ActivePasternack
INDOOR CEILING OMNI ANTENNA, 5 D
Description
General part information
HG74205QPCUPR-NF
RF ANTENNA 5G, CBRS, CDMA, DAS, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M Dome N Type Female (4) Ceiling Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG74205QPCUPR-NF |
|---|---|
| Antenna Type | Dome |
| Applications | LTE, NB-IoT, GSM, LPWAN, M2M, DAS, 5G, IoT, CDMA, CBRS, LTE-M, LoRa |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 2.349 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 4 GHz |
| Frequency Range (Min) | 698 MHz |
| Gain | 4.5 dBi |
| Height (Max) | 0.94 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female, N Type Female (4) |
| Termination Count (N Type Female) | 4 |
| Termination Type | N Type Female |
| VSWR | 1.8 |
