96023225
ActiveBopla Enclosures
BOX PLASTIC 5.95"L X 4.92"W
96023225
ActiveBopla Enclosures
BOX PLASTIC 5.95"L X 4.92"W
Description
General part information
96023225

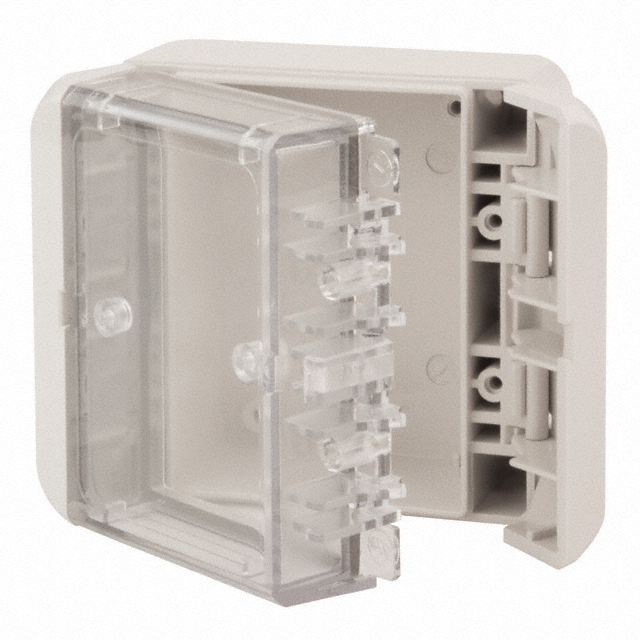

Box Plastic, Polycarbonate Gray, Clear Cover/Door Hinged Door, Lid 5.945" L x 4.921" W (151.00mm x 125.00mm) X 2.362" (60.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 96023225 |
|---|---|
| Area (L x W) | 29.3 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Features | Flame Retardant, PCB Supports |
| Height | 2.362 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP67, IP66 |
| Size / Dimension Length | 5.945 in |
| Size / Dimension Width | 4.921 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
