CUB4I010
ObsoleteAMMETER, MODEL CUB4I, DC CURRENT, 3.5 DIGITS, 85 VAC TO 250 VAC
CUB4I010
ObsoleteAMMETER, MODEL CUB4I, DC CURRENT, 3.5 DIGITS, 85 VAC TO 250 VAC
Description
General part information
CUB4I010

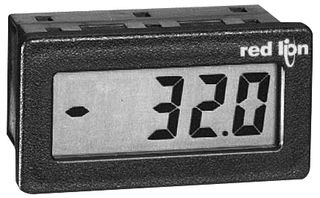

The CUB4I010 is a 3-1/2-digit DC Current Meter with yellow-green backlight. The current meter is designed and manufactured using the latest technology for a high quality, compact, affordable instrument for use in industrial environments. Each unit has a LCD display with 0.6-inch high digits and a DIP switch selectable decimal point. The unit is constructed of a lightweight, high impact plastic case with a clear viewing window. The sealed front panel meets NEMA-4X/IP65 specifications for wash-down and/or dusty environments, when properly installed. A CUB4I unit can be mounted in the same panel cut-out as the CUBVD and CUBID units.
Technical Specifications
Parameters and characteristics for this part
| Specification | CUB4I010 |
|---|---|
| Display Characters - Height | 0.6 in |
| Display Type | LCD - Black Characters, Green Backlight |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Measuring Range (Max) | 0.1999 A |
| Measuring Range (Min) | -0.1999 A |
| Measuring Type | Current |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 3.5 characters |
| Panel Cutout Length | 68 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 33 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply (Maximum) | 28 V |
| Voltage - Supply (Minimum) | 9 VDC |
