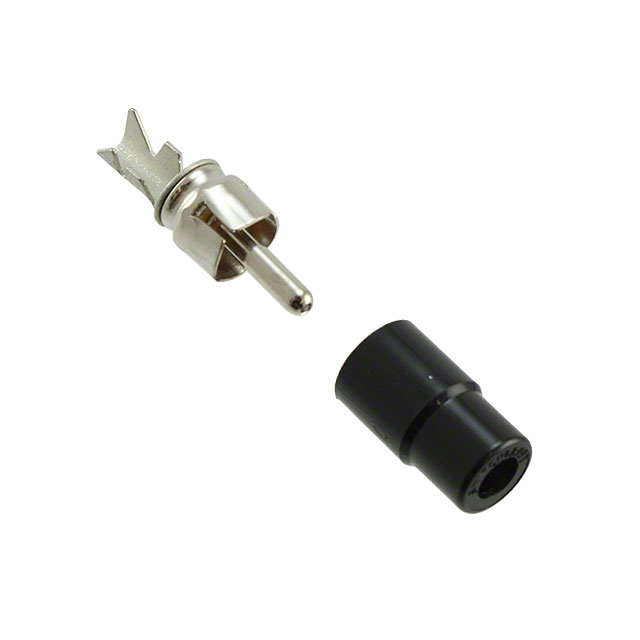

35582X
ActiveSWITCHCRAFT/CONXALL
CONN RCA PLUG MONO 2COND
35582X
ActiveSWITCHCRAFT/CONXALL
CONN RCA PLUG MONO 2COND
Description
General part information
35582X
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Plug Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 35582X |
|---|---|
| Body Color | Black, Silver |
| Cable Opening | 0.203 in |
| Connector Type | Phono (RCA) Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Copper Alloy |
| Current Rating | 6 A |
| Features | Mounting Hardware |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.64 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 140 VDC, 250 V |
