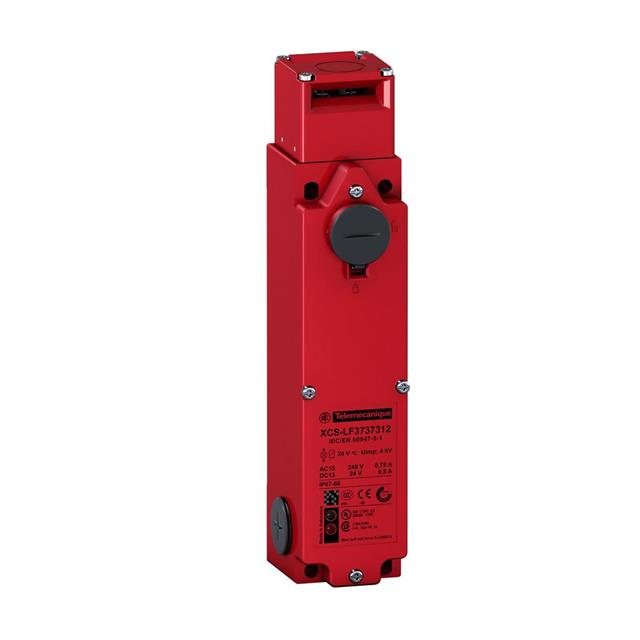

XCSLF3737513
ActiveSCHNEIDER ELECTRIC
INTERLOCK SOLENOID LOCKING 3PST
XCSLF3737513
ActiveSCHNEIDER ELECTRIC
INTERLOCK SOLENOID LOCKING 3PST
Description
General part information
XCSLF3737513
INTERLOCK SOLENOID LOCKING 3PST
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSLF3737513 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CSA, TUV, UL |
| Circuit | 3PST-2NC/1NO |
| Conduit Thread Size | 1/2" NPT |
| Current Rating | 550 mA, 750 mA |
| Holding Force | 306 kgf |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Type | Solenoid Locking |
| Voltage Rating (AC) | 240 VAC |
| Voltage Rating (DC) | 24 VDC |
