1SNG626068R0000
ActiveTE Connectivity AMP Connectors
EP-SGL-M25-GR-D
1SNG626068R0000
ActiveTE Connectivity AMP Connectors
EP-SGL-M25-GR-D
Description
General part information
1SNG626068R0000

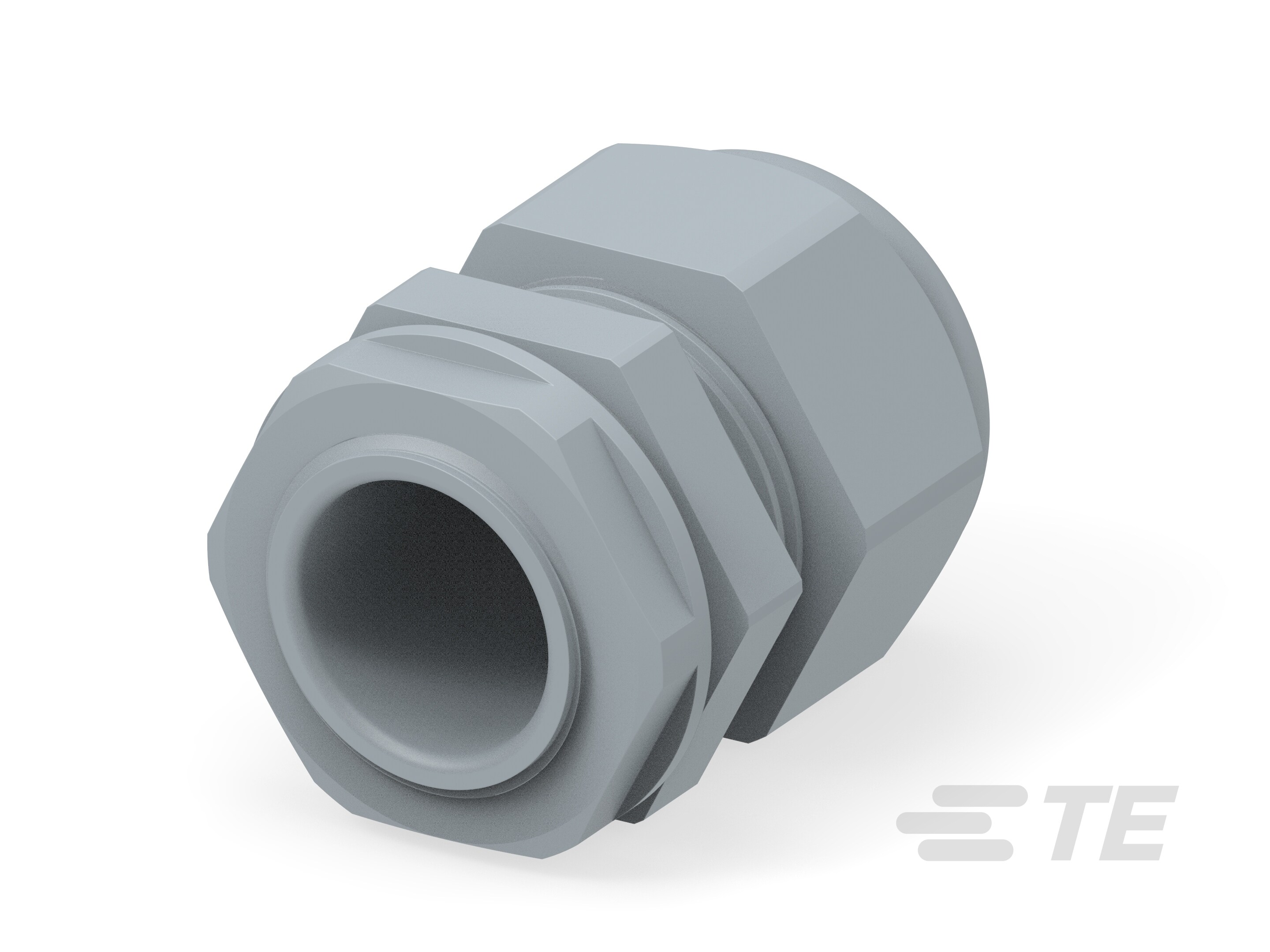

Cable Gland, Standard Threaded, PA 6, 9 – 16.1 mm Clamping Range, Gray, IP68
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNG626068R0000 |
|---|---|
| Color | Gray |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Outside Cable Diameter (Max) | 0.63 in |
| Outside Cable Diameter (Min) | 0.354 in |
| Thread Diameter | 25 mm |
| Thread Length | 0.591 in |
| Thread Pitch | 1.5 mm |
| Type | Cable Gland |
