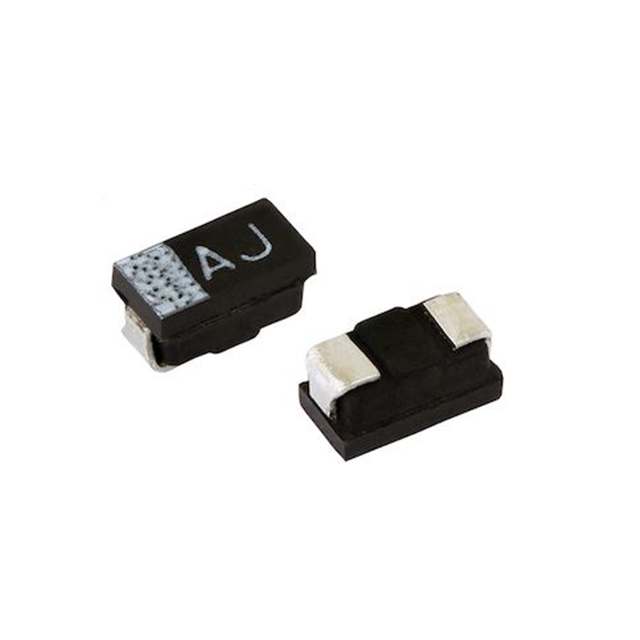

TMCJ0J475MTRF
ActiveVishay Dale
CAP TANT 4.7UF 20% 6.3V 0603
TMCJ0J475MTRF
ActiveVishay Dale
CAP TANT 4.7UF 20% 6.3V 0603
Description
General part information
TMCJ0J475MTRF
4.7 µF Molded Tantalum Capacitors 6.3 V 0603 (1608 Metric) 10Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCJ0J475MTRF |
|---|---|
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 10 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.035 in |
| Manufacturer Size Code | J |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
