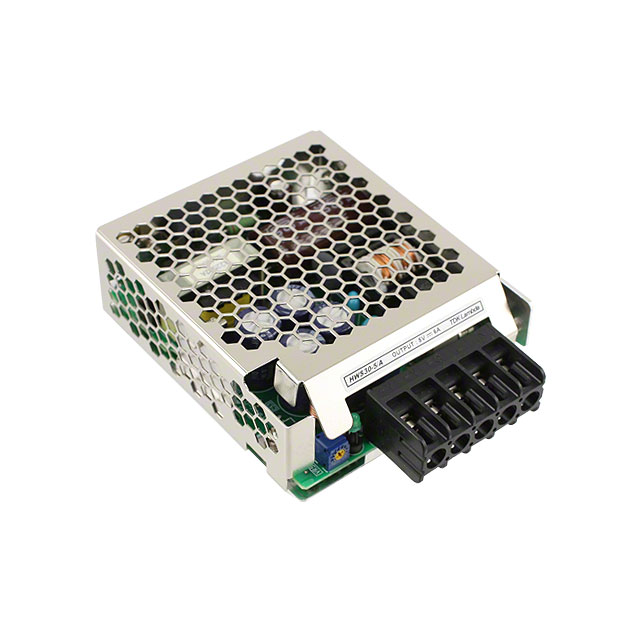

HWS30-3/A
ObsoleteTDK Corporation
AC/DC CONVERTER 3.3V 30W
HWS30-3/A
ObsoleteTDK Corporation
AC/DC CONVERTER 3.3V 30W
Description
General part information
HWS30-3/A
Enclosed AC DC Converters 1 Output 3.3V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS30-3/A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 6 A |
| Efficiency | 73 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 30 W |
| Size / Dimension Height | 3.23 in |
| Size / Dimension Length | 3.74 in |
| Size / Dimension Width | 1.24 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 3.3 V |
