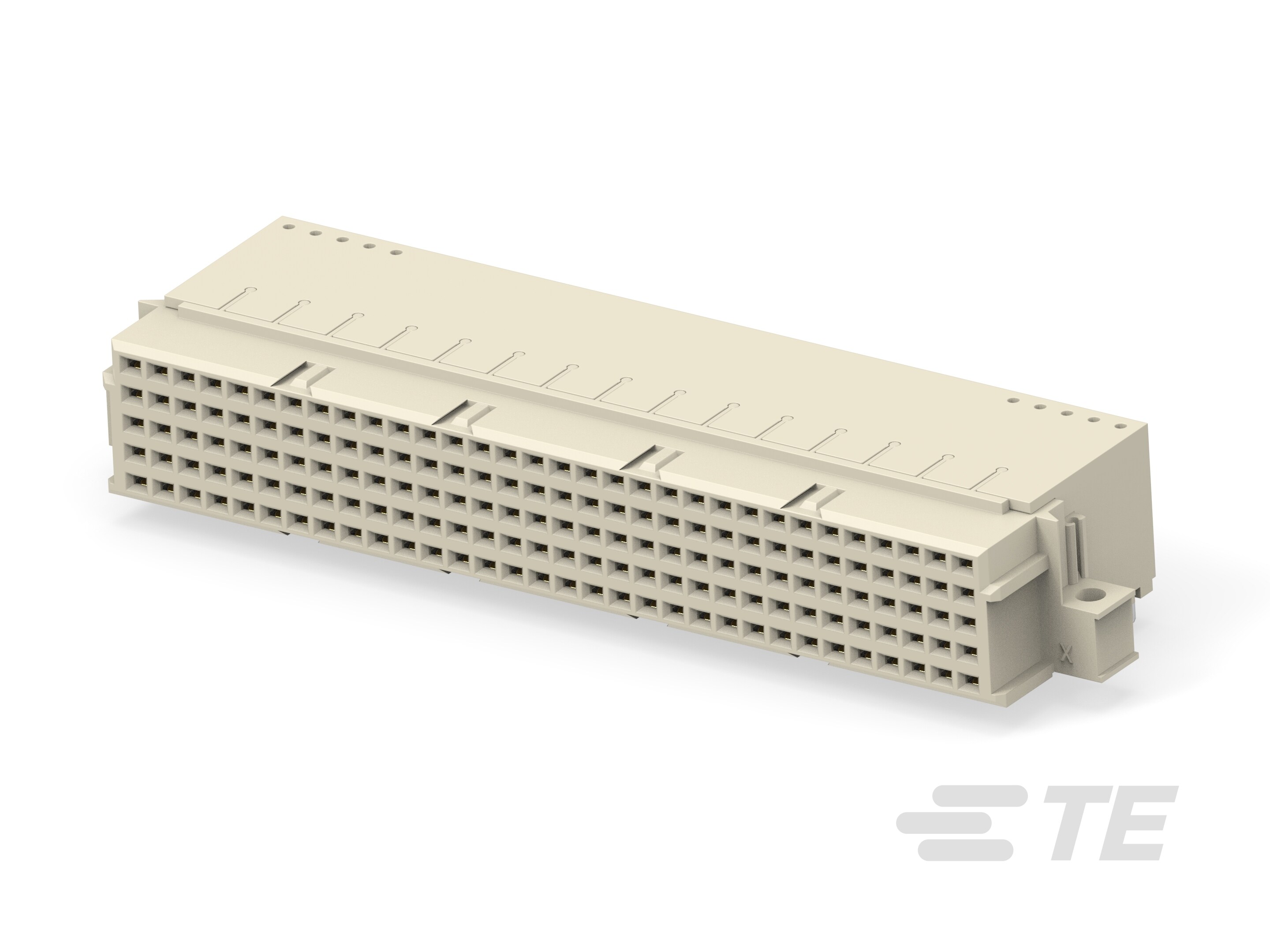

374380-E
ActiveTE Connectivity AMP Connectors
STVTE 160 FI ABCDE VVVVV 7-03 TL-S * * 2
374380-E
ActiveTE Connectivity AMP Connectors
STVTE 160 FI ABCDE VVVVV 7-03 TL-S * * 2
Description
General part information
374380-E
Receptacle, Board-to-Board, 160 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 5 Row, Right Angle, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 374380-E |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.1 in |
| Style | TE |
| Termination | Solder |
