37112C
ActiveMurata Power Solutions Inc.

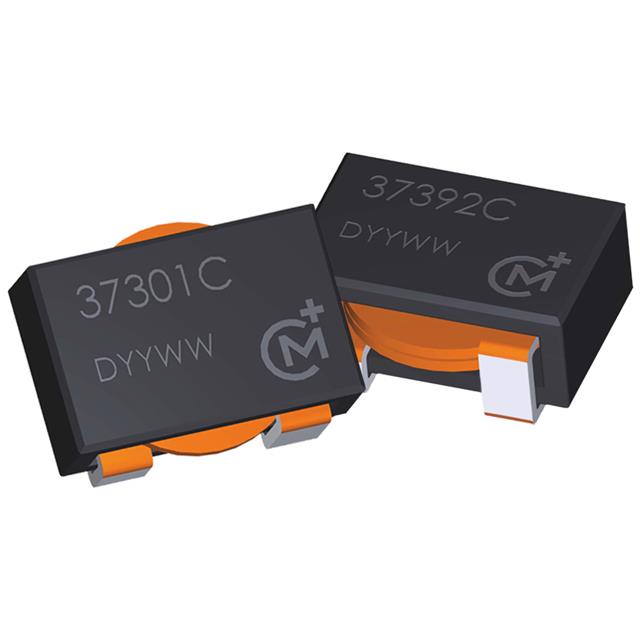

POWER INDUCTOR (SMD), 1.1 ΜH, 14.5 A, UNSHIELDED, 20 A, 3700 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
37112C
ActiveMurata Power Solutions Inc.
POWER INDUCTOR (SMD), 1.1 ΜH, 14.5 A, UNSHIELDED, 20 A, 3700 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 37112C | 37 Series |
|---|---|---|
| Current - Saturation (Isat) | - | 13 - 39 A |
| Current Rating (Amps) | - | 10 - 19.5 A |
| DC Resistance (DCR) | - | 0.9 - 4 mOhm |
| DC Resistance (DCR) | - | 1.3 - 4.8 mOhm |
| Height - Seated (Max) | - | 5.8 - 6.8 mm |
| Height - Seated (Max) | - | 0.228 - 0.268 " |
| Inductance | - | 1.1 - 950 nH |
| Inductance Frequency - Test | - | 100 kHz |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 130 °C |
| Package / Case | - | Nonstandard |
| Shielding | - | Unshielded |
| Size / Dimension | - | 11.5 mm |
| Size / Dimension | - | 0.571 in |
| Size / Dimension | - | 0.453 in |
| Size / Dimension | - | 14.5 mm |
| Tolerance | - | 10 - 20 % |
| Type | - | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
37 Series
POWER INDUCTOR (SMD), 2.4 ΜH, 12 A, UNSHIELDED, 16.5 A, 3700 SERIES
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Current - Saturation (Isat) | Current Rating (Amps) | Inductance | DC Resistance (DCR) | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Package / Case | Shielding | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 37242C | |||||||||||||||||||
Murata Power Solutions Inc. 37301C | 11.5 mm | 0.571 in | 0.453 in | 14.5 mm | Wirewound | 39 A | 19.5 A | 300 nH | 0.9 mOhm | 100 kHz | 5.8 mm | 0.228 " | 20 % | Nonstandard | Unshielded | Surface Mount | -40 °C | 130 °C | |
Murata Power Solutions Inc. 37951C | 11.5 mm | 0.571 in | 0.453 in | 14.5 mm | Wirewound | 18 A | 950 nH | 100 kHz | 6.8 mm | 0.268 in | 20 % | Nonstandard | Unshielded | Surface Mount | -40 °C | 130 °C | 1.3 mOhm | ||
Murata Power Solutions Inc. 37302C | |||||||||||||||||||
Murata Power Solutions Inc. 37222C | 11.5 mm | 0.571 in | 0.453 in | 14.5 mm | Wirewound | 15 A | 11.5 A | 2.2 µH | 4 mOhm | 100 kHz | 5.8 mm | 0.228 " | 10 % | Nonstandard | Unshielded | Surface Mount | -40 °C | 130 °C | |
Murata Power Solutions Inc. 37242C | 11.5 mm | 0.571 in | 0.453 in | 14.5 mm | Wirewound | 16.5 A | 12 A | 2.4 µH | 100 kHz | 6.8 mm | 0.268 in | 10 % | Nonstandard | Unshielded | Surface Mount | -40 °C | 130 °C | 3 mOhm | |
Murata Power Solutions Inc. 37242C | |||||||||||||||||||
Murata Power Solutions Inc. 37301C | |||||||||||||||||||
Murata Power Solutions Inc. 37112C | |||||||||||||||||||
Murata Power Solutions Inc. 37142C | 11.5 mm | 0.571 in | 0.453 in | 14.5 mm | Wirewound | 22 A | 16 A | 1.4 µH | 100 kHz | 6.8 mm | 0.268 in | 10 % | Nonstandard | Unshielded | Surface Mount | -40 °C | 130 °C | 1.9 mOhm |
Description
General part information
37 Series
1.1 µH Unshielded Wirewound Inductor 14.5 A 2.2mOhm Max Nonstandard
