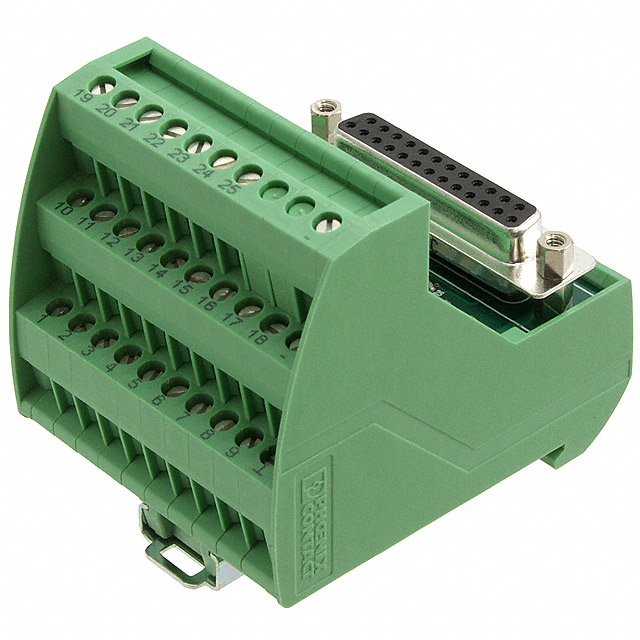

Specification	2322210

Control Side Cable Retainer Type	Jackscrew Socket
Control Side Connection Gender	Female
Control Side Connection Shape	D-Sub
Current Rating (Per Contact)	2.5 A
Features	LED
Length	2.26 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	25
Process Side Connection	Terminal Blocks, Screw Connection
Voltage - Rated	24 VAC
Width	2.717 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	12 AWG
