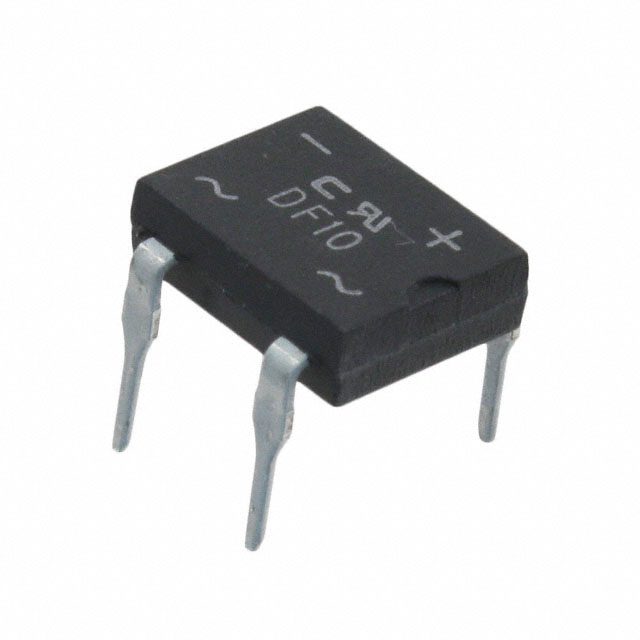

DF10-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 1A 4-DF

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 1A 4-DF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DF10-G	DF10 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 çA	10 çA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-EDIP	4-SMD, Gull Wing, 4-EDIP
Package / Case	0.321 in	0.321 in
Package / Case	8.15 mm	8.15 mm
Supplier Device Package	4-DF	DFS, 4-DF
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V	1000 V

BRIDGE RECT 1PHASE 1KV 1A DFS

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Diode Type	Package / Case	Package / Case
Comchip Technology DF10S-HF	4-SMD, Gull Wing	-55 °C	150 °C	Surface Mount	10 çA	1 A	Standard	1.1 V	1000 V	DFS	Single Phase
Comchip Technology DF10ST-HF	4-SMD, Gull Wing	-55 °C	150 °C	Surface Mount	10 çA	1 A	Standard	1.1 V	1000 V	DFS	Single Phase
Comchip Technology DF10-G	4-EDIP	-55 °C	150 °C	Through Hole	10 çA	1 A	Standard	1.1 V	1000 V	4-DF	Single Phase	0.321 in	8.15 mm
Comchip Technology DF10SP-HF	4-SMD, Gull Wing	-55 °C	150 °C	Surface Mount	10 çA	1 A	Standard	1.1 V	1000 V	DFS	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole 4-DF
