FMC0451315-24
ActiveFairview Microwave
CBL ASSY SMAPLUG-SSMAPLUG 24
FMC0451315-24
ActiveFairview Microwave
CBL ASSY SMAPLUG-SSMAPLUG 24
Description
General part information
FMC0451315-24

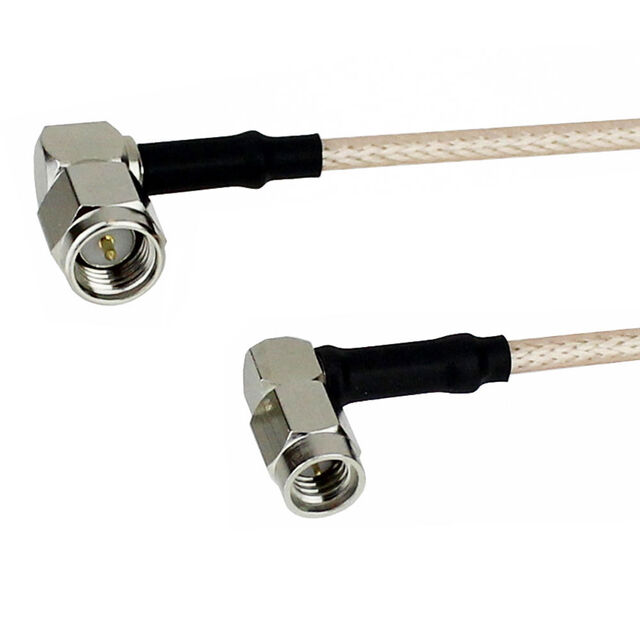

Cable Assembly Coaxial SMA to SSMA RG-316 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0451315-24 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SSMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, SSMA |
