630-2WK2650-4N3

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-2WK2650-4N3

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-2WK2650-4N3

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

630-2WK Series

...

Part	Current Rating (Amps)	Color	Contact Type	Shell Material, Finish	Connector Type	Contact Material	Contact Finish	Dielectric Material	Termination	Voltage Rating	Number of Positions	Number of Rows	Mounting Type	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Backset Spacing	Backset Spacing	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 630-2WK2240-4N2	40 A	Black	Power	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Housing/Shell (4-40)
EDAC Inc. 630-2WK2240-4TA	40 A	Black	Power		Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Board Side (M3)
EDAC Inc. 630-2WK2650-2N3	20 A	Black	Power	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle		-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Housing/Shell (4-40)	0.76 Ám	30 Áin	Board Lock Mounting Brackets
EDAC Inc. 630-2WK2240-5N3		Black	Coax	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	9.4 mm	0.37 in	Housing/Shell (4-40)			Board Lock Mounting Brackets
EDAC Inc. 630-2WK2250-3TA	30 A	Black	Power		Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Board Side (M3)
EDAC Inc. 630-2WK2650-1N5	10 A	Black	Power	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle		-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	4-40	0.76 Ám	30 Áin	Board Lock Mounting Brackets
EDAC Inc. 630-2WK2250-1T5	10 A	Black	Power		Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	4-40			Board Lock Mounting Brackets
EDAC Inc. 630-2WK2240-3TE	30 A	Black	Power		Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	M3			Mounting Brackets
EDAC Inc. 630-2WK2250-3N4	30 A	Black	Power	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle	Flash	-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Housing/Shell (4-40)			Mounting Brackets
EDAC Inc. 630-2WK2650-4N3	40 A	Black	Power	Nickel Plated Steel	Female Sockets Male Pins Receptacle	Copper Alloy	Gold	Polyester Thermoplastic	Solder	125 VDC	2	1	Through Hole Right Angle		-55 °C	125 °C	1 (DE E) 2V2 2W2 2W2C 2WK2	Combo D-Sub	UL94 V-0	13.2 mm	0.52 "	Housing/Shell (4-40)	0.76 Ám	30 Áin	Board Lock Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 11.48

Description

General part information

630-2WK Series

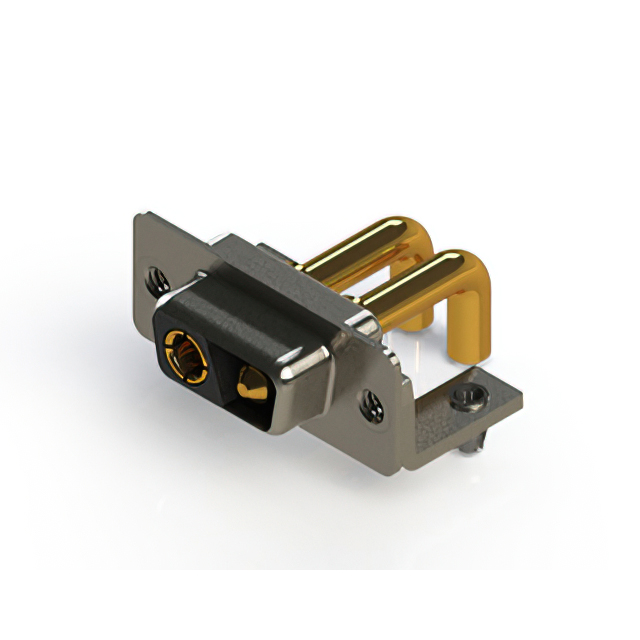

2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
