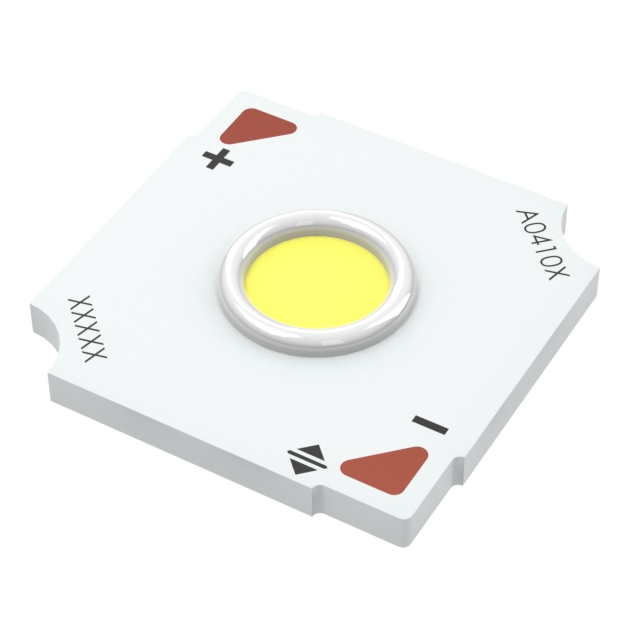

CHA0410-0000-000D0U0A30G

Active

Cree LED

X LAMP CHA LIGHT EMITTING DIODE WHITE

Search across all available documentation for this part.

Active

Cree LED

X LAMP CHA LIGHT EMITTING DIODE WHITE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0410 White, Warm Square

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CHA0410-0000-000D0U0A30G	CHA0410 Series

CCT (K)	3000 K	2700 - 4000 K
Color	White, Warm	Neutral, White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 95
Current - Max [Max]	900 mA	300 - 900 mA
Current - Test	525 mA	175 - 525 mA
Height [z]	1.5 mm	1.5 - 1.9 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.2 mm	4.2 mm
Lumens/Watt @ Current - Test	110 lm/W	89 - 128 lm/W
Luminous Flux @ Current/Temperature	693 lm	561 - 807 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	114 °	114 °
Voltage - Forward (Vf) (Typ)	12 V	12 - 36 V

XLAMP CHA LED WHITE PRO9

Part	Height [z]	Temperature - Test	Configuration	Voltage - Forward (Vf) (Typ)	Type	Viewing Angle	Lens Type	Color	Current - Test	CCT (K)	CRI (Color Rendering Index)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CHA0410-R160-00PD0U0A40H	1.5 mm	85 °C	Square	12 V	Chip On Board (COB)	114 °	Flat	Neutral, White	175 mA	4000 K	90	300 mA	4.2 mm
Cree LED CHA0410-R160-00PN0U0A27H	1.5 mm	85 °C	Square	36 V	Chip On Board (COB)	114 °	Flat	Warm, White	525 mA	2700 K	90	900 mA	4.2 mm
Cree LED CHA0410-R160-00PD0Z0A30H	1.5 mm	85 °C	Square	12 V	Chip On Board (COB)	114 °	Flat	Warm, White	175 mA		95	300 mA	4.2 mm
Cree LED CHA0410-R160-00PN0U0A30Q	1.5 mm	85 °C	Square	36 V	Chip On Board (COB)	114 °	Flat	Warm, White	525 mA		90	900 mA	4.2 mm
Cree LED CHA0410-R160-00PN0U0A31Q	1.5 mm	85 °C	Square	36 V	Chip On Board (COB)	114 °	Flat	Warm, White	525 mA	3100 K	90	900 mA	4.2 mm
Cree LED CHA0410-R160-00PD0U0A30Q	1.5 mm	85 °C	Square	12 V	Chip On Board (COB)	114 °	Flat	Warm, White	175 mA		90	300 mA	4.2 mm
Cree LED CHA0410-R160-00PN0Z0A27H	1.5 mm	85 °C	Square	36 V	Chip On Board (COB)	114 °	Flat	Warm, White	525 mA	2700 K	95	900 mA	4.2 mm
Cree LED CHA0410-R160-00PN0Z0AL7C	1.5 mm	85 °C	Square	36 V	Chip On Board (COB)	114 °	Flat		525 mA		95	900 mA	4.2 mm
Cree LED CHA0410-R160-00PD0U0A35G	1.5 mm	85 °C	Square	12 V	Chip On Board (COB)	114 °	Flat	Warm, White	175 mA	3500 K	90	300 mA	4.2 mm
Cree LED CHA0410-0000-000D0U0A30H	1.9 mm	85 °C	Square	12 V	Chip On Board (COB)	114 °	Flat	Warm, White	525 mA	3000 K	90	900 mA	4.2 mm	693 lm	110 lm/W
