A1DXB-3036G

Active

TE Connectivity AMP Connectors

IDC CABLE- AKR30B/AE30G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A1DXB-3036G

Active

TE Connectivity AMP Connectors

IDC CABLE- AKR30B/AE30G/X

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1DXB-3036G	A1DXB Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 ft
Length [x]	914.4 mm	914.4 mm
Number of Positions	30	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.48
		10	$ 7.86
		25	$ 7.29
		50	$ 6.89
		100	$ 6.51
		250	$ 6.05
		500	$ 5.72
		1000	$ 5.41

A1DXB Series

IDC CABLE- AKR40B/AE40G/X

Part	Connector Type	Number of Rows	Contact Finish	Number of Positions	Cable Termination	Features	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Shielding	Color	Number of Positions
TE Connectivity AMP Connectors A1DXB-4036G	Socket to Cable	2	Gold	40	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded
TE Connectivity AMP Connectors A1DXB-1036M	Socket to Cable	2	Gold	10	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXB-4436M	Socket to Cable	2	Gold	44	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXB-4036M	Socket to Cable	2	Gold	40	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXB-3036G	Socket to Cable	2	Gold	30	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded
TE Connectivity AMP Connectors A1DXB-2036G	Socket to Cable	2	Gold	20	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded
TE Connectivity AMP Connectors A1DXB-3436G	Socket to Cable	2	Gold	34	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded
TE Connectivity AMP Connectors A1DXB-1636G	Socket to Cable	2	Gold		IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded		16
TE Connectivity AMP Connectors A1DXB-5036M	Socket to Cable	2	Gold	50	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXB-2436M	Socket to Cable	2	Gold	24	IDC	Polarizing Key, Strain Relief	0.05 "	1.27 mm	0.1 in	2.54 mm	3 ft	914.4 mm	0.76 Ám	30 Áin	Unshielded	Multiple, Ribbon

Description

General part information

A1DXB Series

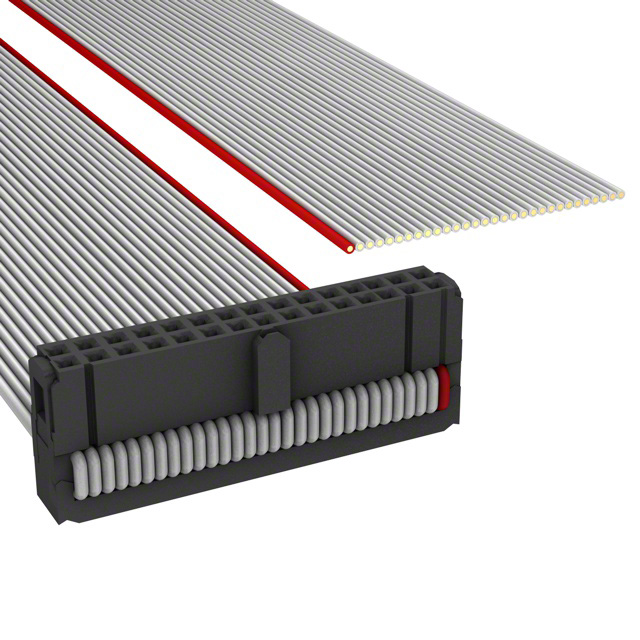

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
