XCSTA893
ActiveSCHNEIDER ELECTRIC

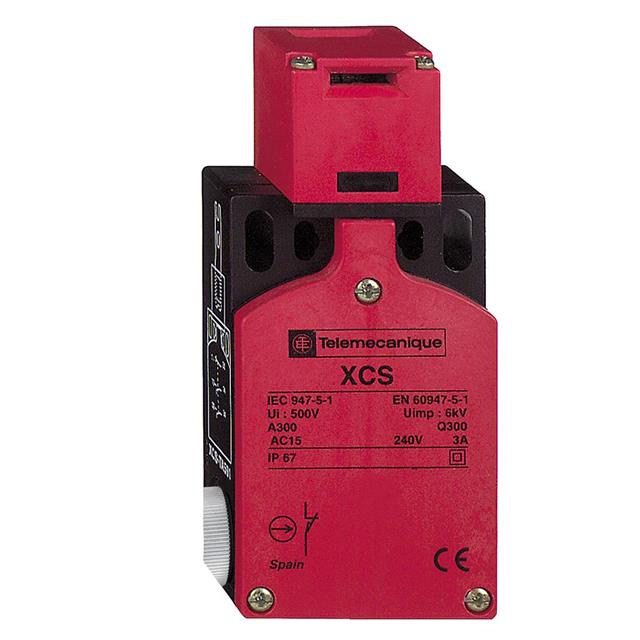

SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, 3PST-NC, SCREW CLAMP, 120 V, 6 A, IP67
XCSTA893
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, 3PST-NC, SCREW CLAMP, 120 V, 6 A, IP67
Description
General part information
XCSTA893
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, 3PST-NC, SCREW CLAMP, 120 V, 6 A, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSTA893 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | UL, CSA |
| Circuit | 3PST-NC |
| Conduit Thread Size | 1/2" NPT |
| Current Rating | 550 mA, 6 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating (AC) | 120 VAC |
| Voltage Rating (DC) | 125 VDC |
