1410189-1

Active

TE Connectivity AMP Connectors

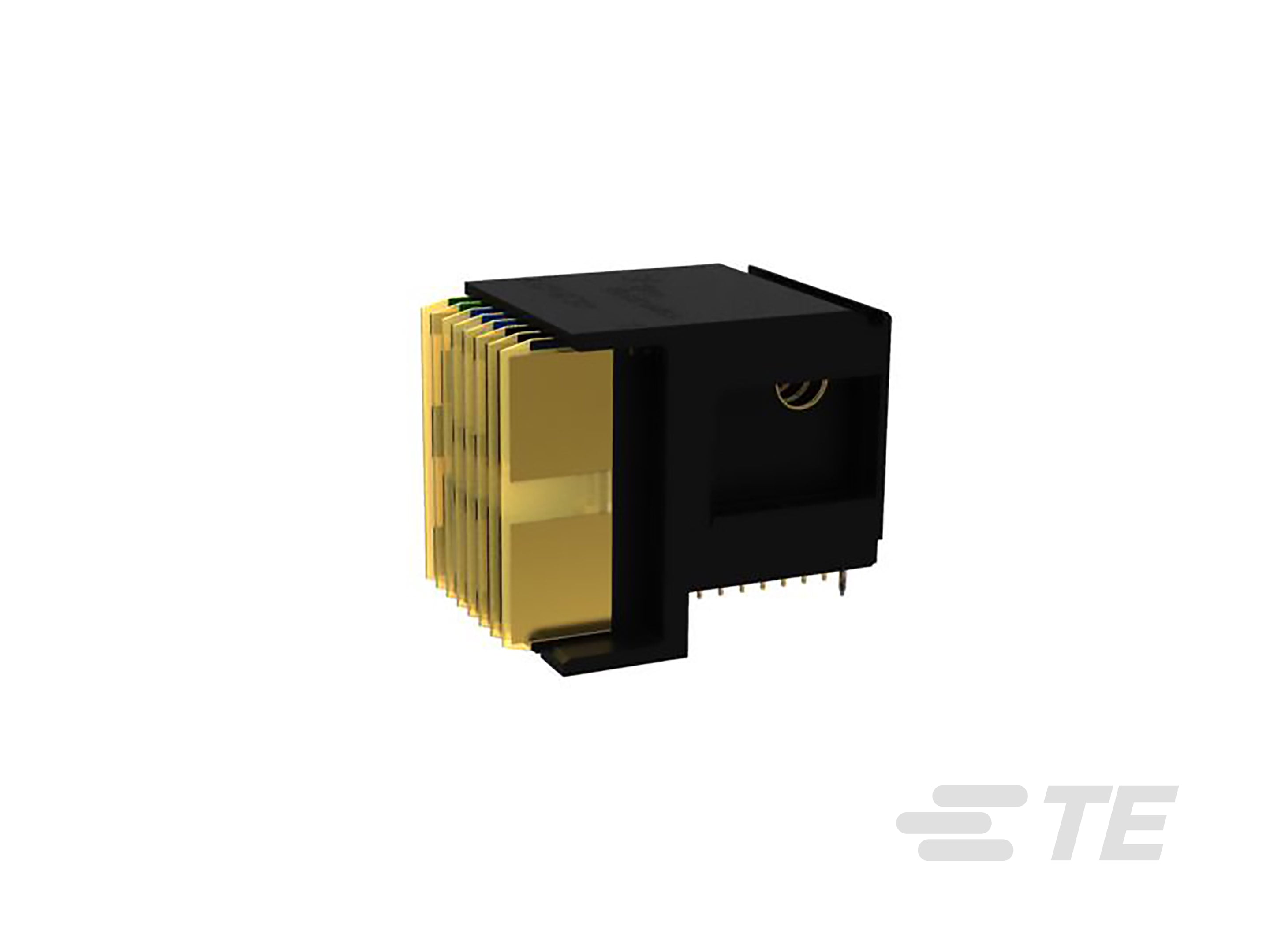

MULTIGIG RT T2 7RW H-LFT,ET2

Find alt

Alpha

1410189-1

Active

TE Connectivity AMP Connectors

MULTIGIG RT T2 7RW H-LFT,ET2

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MULTIGIG RT 2 Series

56 Position High Speed Backplane Connector, 7 Row, 8 Column, PCB Mount Header, Right Angle, Fully Shrouded, 1.8 mm [.071 in] Centerline, MULTIGIG RT 2

Technical Specifications

Parameters and characteristics for this part

Specification	1410189-1

Color	Black
Connector Style	Left End, Half, VITA 46
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	1 A
Features	Board Guide
Ground Contacts (Typical)	11
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	8
Number of Positions	56
Number of Positions Loaded	53
Number of Rows	7
Open (Typical)	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.071 in
Power Groups (Typical)	6
Signal Pairs (Typical)	4
Single Signal (Typical)	16
Termination	Press-Fit
Voltage Rating	50 V

MULTIGIG RT 2 Series

Part	Connector Style	Features	Contact Finish Thickness	Single Signal (Typical)	Signal Pairs (Typical)	Ground Contacts (Typical)	Number of Rows	Contact Finish	Mounting Type	Number of Positions	Number of Columns	Connector Usage	Pitch	Termination	Number of Positions Loaded	Color	Connector Type	Material Flammability Rating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Power Contacts (Typical)	Open (Typical)	Signal Contacts (Typical)	Number of Positions Loaded	Contact Layout (Typical)	Number of Columns (Filled)	Number of Columns (Total)
TE Connectivity AMP Connectors 1410971-3	Half Left End VITA 46	Board Guide	50 µin	4	16	20	7	Gold	Board Edge Right Angle Through Hole	56	8	Daughtercard	0.071 in	Press-Fit	All	Black	Male Blades Plug	UL94 V-0	50 V	-55 °C	105 °C
TE Connectivity AMP Connectors 1410147-1	Center VITA 41	Board Guide	30 µin	8	30	37	7	Gold	Board Edge Right Angle Through Hole	105	15	Daughtercard	0.071 in	Solder	All	Black	Male Blades Plug	UL94 V-0		-55 °C	105 °C
TE Connectivity AMP Connectors 1410135-2	Center VITA 41		50 µin				9	Gold	Through Hole	135	15	Backplane	0.071 in	Press-Fit	All	Black	Female Blade Sockets Receptacle	UL94 V-0		-55 °C	105 °C
TE Connectivity AMP Connectors 1410965-1	Center VITA 46		50 µin				9	Gold	Through Hole	144	16	Backplane	0.071 in	Press-Fit	All	Black	Female Blade Sockets Receptacle
TE Connectivity AMP Connectors 1410326-3	Center MULTIGIG		50 µin		20	31	7	Gold	Board Edge Right Angle Through Hole	112	16	Daughtercard	0.071 in	Solder		Black	Male Blades Plug	UL94 V-0	50 V	-55 °C	105 °C	18	3	20	112
TE Connectivity AMP Connectors 1410125-1	Full MULTIGIG Right End				64	128	16	Gold	Board Edge Right Angle Through Hole	256	16	Daughtercard	0.071 in	Solder	All	Black	Male Blades Plug
TE Connectivity AMP Connectors 1410968-3	Center VITA 46	Board Guide	50 µin		20	38	7	Gold	Board Edge Right Angle Through Hole	112	16	Daughtercard	0.071 in	Press-Fit		Black	Male Blades Plug	UL94 V-0	50 V	-55 °C	105 °C	12		20	105	Mechanical
TE Connectivity AMP Connectors 1410132-1	Full MULTIGIG Stand Alone						16	Gold	Board Edge Right Angle Through Hole	256	16	Daughtercard	0.071 in	Solder	All	Black	Male Blades Plug	UL94 V-0	50 V	-55 °C	105 °C
TE Connectivity AMP Connectors 1410187-3	Center VITA 46	Board Guide	50 µin	8	32	40	7	Gold	Board Edge Right Angle Through Hole	112	16	Daughtercard	0.071 in	Press-Fit	All	Black	Male Blades Plug
TE Connectivity AMP Connectors 1410303-1	Center VITA 41	Board Guide	30 µin	3	14	18	7	Gold	Board Edge Right Angle Through Hole	49		Daughtercard	0.071 in	Solder		Black	Male Blades Plug	UL94 V-0	50 V	-55 °C	105 °C						7	15
