AIUR-10-470K
ActiveAbracon LLC
FIXED IND 47UH 1.16A 230 MOHM TH
AIUR-10-470K
ActiveAbracon LLC
FIXED IND 47UH 1.16A 230 MOHM TH
Description
General part information
AIUR-10-470K

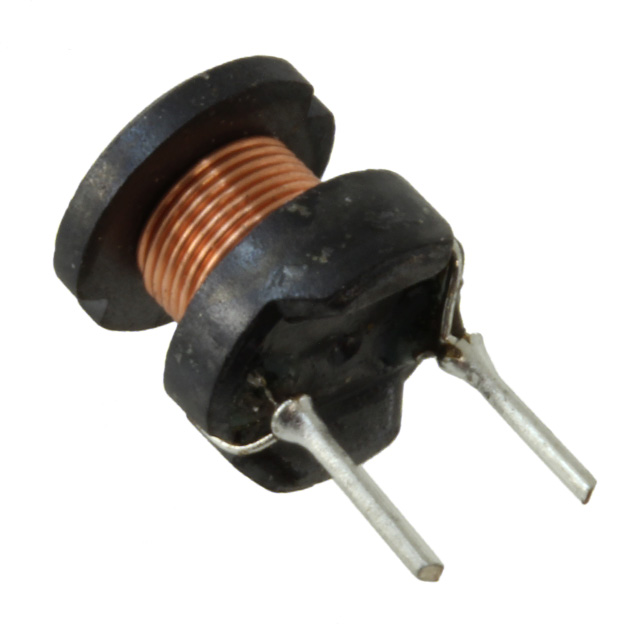

47 µH Unshielded Drum Core, Wirewound Inductor 1.16 A 230mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-10-470K |
|---|---|
| Current Rating | 1.16 A |
| DC Resistance (DCR) (Max) | 230 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
