TAX38125102-020
ActiveTE Connectivity AMP Connectors

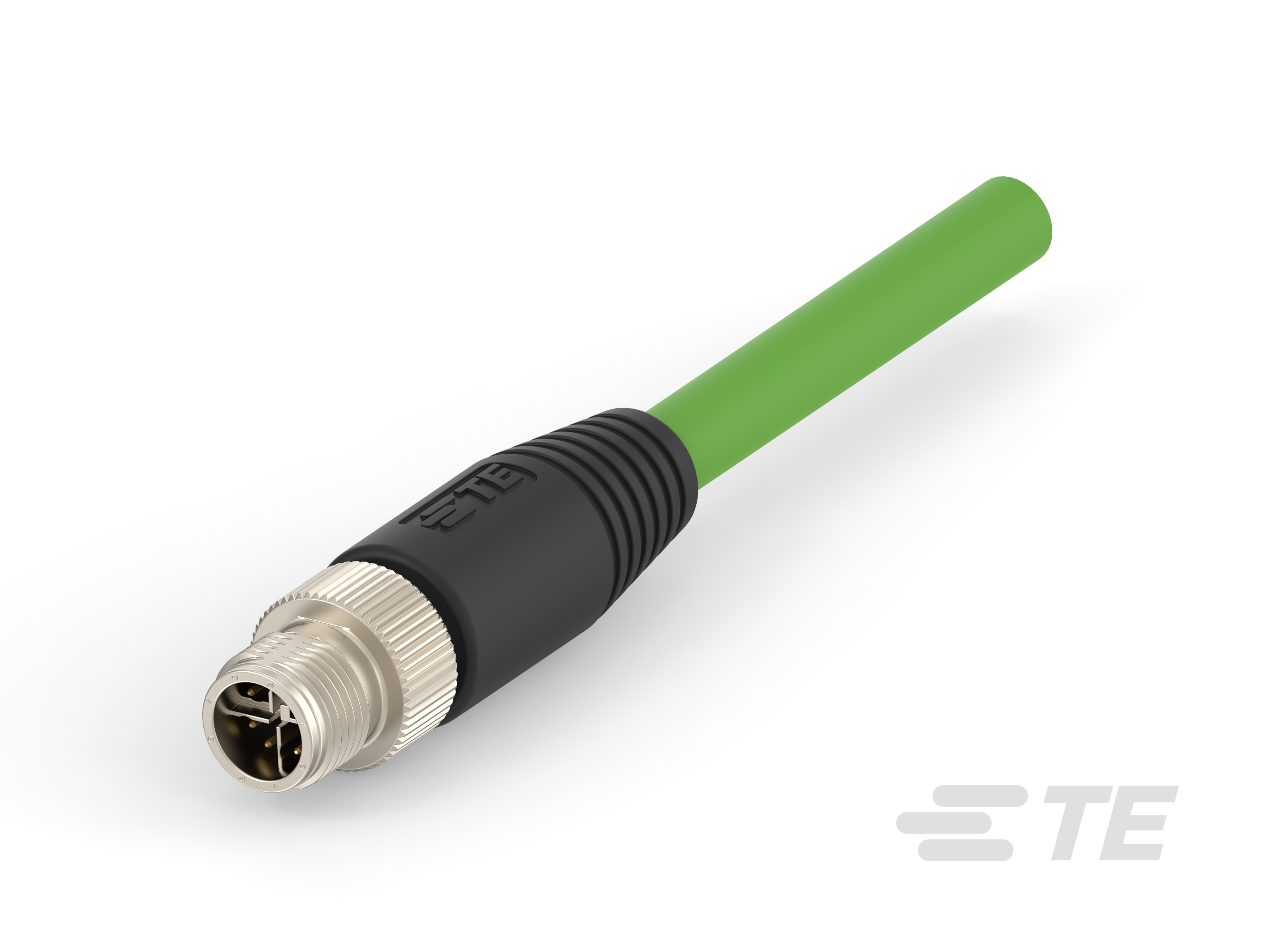

SENSOR CABLE, X-CODE, M12 PLUG, FREE END, 8 POSITIONS, 2 M, 6.6 FT
TAX38125102-020
ActiveTE Connectivity AMP Connectors
SENSOR CABLE, X-CODE, M12 PLUG, FREE END, 8 POSITIONS, 2 M, 6.6 FT
Description
General part information
TAX38125102-020
M12 Pigtail Cable Assembly, 8 Position, Cable Assembly Length 2 m [6.5 ft], Industrial Ethernet, Ethernet, X Code, M12 Plug End A, Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | TAX38125102-020 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | X |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Green |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 6.56 ft |
| Shielding | Shielded |
| Usage | Industrial Environments, Cat6a |
