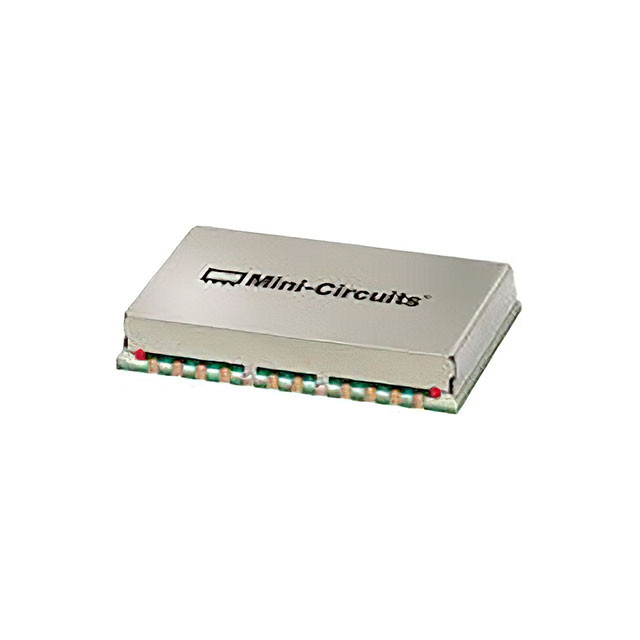

SEPS-8-272+
ActiveMini-Circuits
RF PWR DVDR 700MHZ-2.7GHZ 24SMD
SEPS-8-272+
ActiveMini-Circuits
RF PWR DVDR 700MHZ-2.7GHZ 24SMD
Description
General part information
SEPS-8-272+
RF Power Divider 700 MHz ~ 2.7 GHz Isolation (Min) 14dB, 1.7 VSWR (Max), 19° Imbalance (Max) 24-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SEPS-8-272+ |
|---|---|
| Frequency (Max) | 2.7 GHz |
| Frequency (Min) | 700 MHz |
| Imbalance (Max) | 19 ° |
| Insertion Loss | 2.8 dB |
| Isolation (Min) | 14 dB |
| Package / Case | No Lead, 24-SMD |
| Size / Dimension Height | 0.255 in |
| Size / Dimension Length | 1.42 in |
| Size / Dimension Width | 0.93 in |
| VSWR (Max) | 1.7 |
