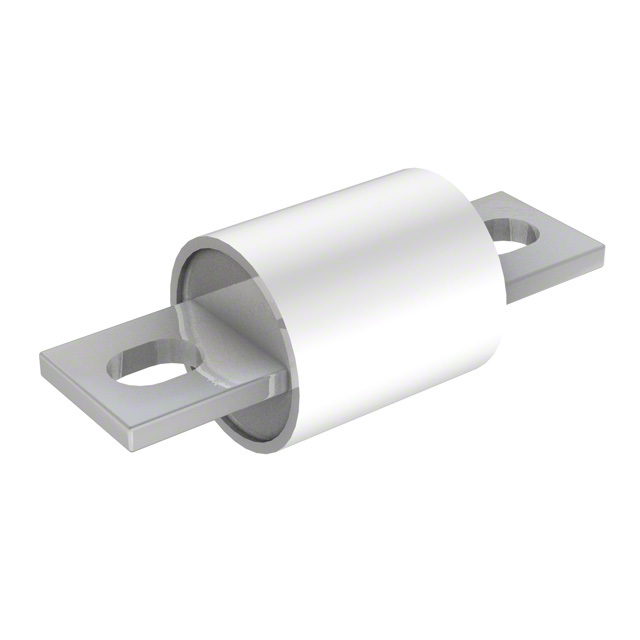

FWA-400B
ActiveEaton - Electronics Division
FUSE CARTRIDGE 400A 150VAC/VDC
FWA-400B
ActiveEaton - Electronics Division
FUSE CARTRIDGE 400A 150VAC/VDC
Description
General part information
FWA-400B
400A 150 VAC 150 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWA-400B |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity (AC) | 100 kA |
| Breaking Capacity (DC) | 20 kA |
| Current Rating | 400 A |
| Fuse Type | Cartridge |
| Melting I²t | 20300 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1 in |
| Size / Dimension Length | 1.156 in |
| Voltage Rating - AC | 150 V |
| Voltage Rating - DC | 150 VDC |
