5180-4PG-521

Active

Conxall/Switchcraft

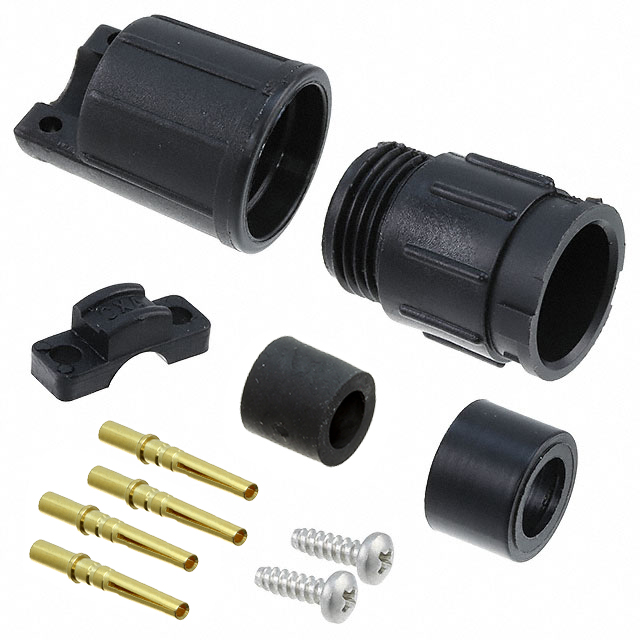

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5180-4PG-521

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5180-4PG-521	5180-4PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	5.33 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.21 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5180-4PG Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Mounting Type	Orientation	Cable Opening [custom]	Cable Opening [custom]	Shielding	Voltage Rating	Color	Number of Positions	Fastening Type	Ingress Protection	Backshell Material, Plating	Primary Material	Contact Material	Connector Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5180-4PG-515	Gold	-40 °C	115 °C	Crimp	Backshell, Cable Clamp	Free Hanging (In-Line)	Keyed	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle
Conxall/Switchcraft 5180-4PG-330	Gold	-40 °C	115 °C	Crimp	Backshell	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 5180-4PG-518	Gold	-40 °C	115 °C	Crimp	Backshell, Cable Clamp	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5180-4PG-3DC	Gold	-40 °C	115 °C	Crimp	Backshell	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle
Conxall/Switchcraft 5180-4PG-328	Gold	-40 °C	115 °C	Crimp	Backshell	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle	7.11 mm	0.29 in		0.28 in					7.37 mm
Conxall/Switchcraft 5180-4PG-528	Gold	-40 °C	115 °C	Crimp	Backshell, Cable Clamp	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle	7.11 mm	0.29 in		0.28 in					7.37 mm
Conxall/Switchcraft 5180-4PG-521	Gold	-40 °C	115 °C	Crimp	Backshell, Cable Clamp	Free Hanging (In-Line)	Keyed			Unshielded	600 V	Black	4	Bayonet Lock	Weathertight	Nylon, Polyamide (PA)	Plastic	Brass	Male Pins, Receptacle	5.33 mm	0.23 in		0.21 in					5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.20

Description

General part information

5180-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources
